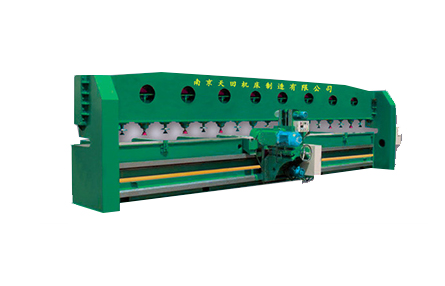

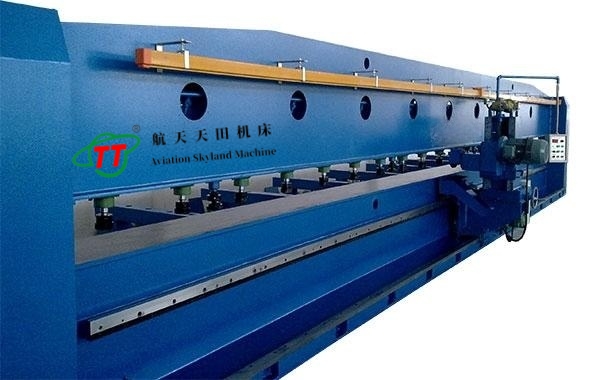

XBJ-C系列单头通用铣边机(XBJ-C Series Single-head Universal Edge Milling Machine)

XBJ-C系列单头通用铣边机(XBJ-C Series Single-head Universal Edge Milling Machine)

XBJ-C系列单头通用铣边机(XBJ-C Series Single-head Universal Edge Milling Machine)

服务热线: 13905146213
产品简介 / Introduction


单头通用铣边机的应用场地与作用性能特点

摘要

本文详细探讨单头通用铣边机的应用场地、核心作用及性能特点。通过分析其在广泛适用于锅炉、压力容器制造行业、造船、电力、石油、化工机械、工程机械制造,对各类低碳钢板、不锈钢板及铝板在焊接前的坡口加工、斜边、直边、U型坡口能一次铣削成型,等行业的应用场景,阐述其在材料边缘处理中的关键作用;并从设备结构、加工能力、操作便利性等维度深入剖析性能特点,为相关企业合理选择与高效使用该设备提供参考依据,助力提升生产效率与加工质量;与刨边机相比,具有价格低、能耗低、工效高、光洁度高、操作及维修方便等优点

关键词

单头通用铣边机;应用场地;作用;性能特点

一、引言

在现代工业生产中,材料边缘的加工质量对产品的整体性能与装配精度有着直接影响。单头通用铣边机作为一种常见的边缘加工设备,凭借其灵活性与通用性,在众多工业领域发挥着重要作用。深入了解其应用场地、作用及性能特点,有助于企业根据自身生产需求合理配置设备,优化生产流程,提升产品竞争力 。

二、应用场地

(一)金属加工行业

在金属板材与型材加工中,单头通用铣边机应用广泛。对于钢板加工企业,在生产各类金属构件时,需对钢板边缘进行处理,如切割后的钢板边缘存在毛刺、氧化皮等缺陷,单头通用铣边机可将其去除,使边缘平整光滑,为后续焊接、折弯等工序做好准备。在不锈钢制品加工中,无论是厨具、装饰部件还是工业设备零件,通过铣边机加工边缘,可提高产品的美观度与精度 。

(二)机械制造领域

机械零部件制造过程中,许多零件的边缘需要精确加工。单头通用铣边机可用于齿轮、法兰、轴类等零件的边缘铣削,去除加工余量,保证零件的尺寸精度与表面质量,满足装配要求。例如,在减速机制造中,箱体的边缘加工直接影响密封性能,铣边机能够精准加工出符合标准的边缘,确保设备运行时无泄漏 。

(三)钢结构工程

钢结构建筑的建设离不开大量钢材的加工。单头通用铣边机可对钢梁、钢柱等构件的边缘进行加工,制作焊接坡口,提高焊接质量与结构稳定性。在桥梁建设中,钢梁的拼接需要高精度的边缘加工,铣边机能够保证坡口角度与尺寸的一致性,增强桥梁结构的承载能力 。

(四)压力容器制造

压力容器的安全性要求极高,对材料边缘加工精度把控严格。单头通用铣边机可对压力容器用钢板进行铣边处理,去除表面缺陷,加工出合适的焊接坡口,确保焊接接头强度,满足压力容器的制造标准 。

三、作用

(一)边缘修整

有效去除材料在前期加工(如切割、锻造)中产生的毛刺、毛边、熔渣及不平整部分,使材料边缘达到平滑、规整的状态,避免在后续加工或使用过程中划伤操作人员或影响其他部件的装配 。

(二)坡口加工

根据不同焊接工艺需求,加工出各类形状与角度的焊接坡口,如 V 形、U 形、X 形等。合理的坡口设计能增加焊缝熔合面积,提高焊接质量,减少焊接变形与缺陷,确保焊接接头的强度与可靠性 。

(三)尺寸精度控制

通过精确的定位与进给系统,保证材料边缘的加工尺寸符合设计图纸要求,将尺寸误差控制在极小范围内。对于一些对精度要求较高的零件,铣边机可通过多次铣削逐步达到规定尺寸,满足高精度加工需求 。

(四)表面质量改善

通过铣削加工,降低材料边缘的表面粗糙度,提高表面光洁度,改善材料的外观质量。对于一些外观要求较高的产品,良好的表面质量有助于提升产品的市场竞争力 。

四、性能特点

(一)结构紧凑,通用性强

单头通用铣边机结构设计简洁,占地面积小,适用于各类规模的生产车间。其可通过更换不同规格的刀具、调整加工参数,适应多种材料(如碳钢、不锈钢、合金钢等)与不同形状、尺寸的工件加工,满足多样化生产需求,尤其适合小批量、多品种的加工场景 。

(二)操作简便,易于维护

设备配备直观的操作界面与控制面板,操作人员经过简单培训即可熟练掌握操作方法。其机械结构与控制系统相对简单,零部件布局合理,日常的检查、保养与维修工作便捷。刀具更换流程简单,可快速完成,减少停机时间,提高设备利用率 。

(三)加工精度较高

采用精密的导轨、丝杆等传动部件,配合高精度的定位系统,能够保证铣削加工的精度。在加工过程中,通过稳定的进给速度与刀具转速控制,可有效减少加工误差,实现平面度、直线度、垂直度等指标的高精度加工,满足一般工业生产对零件精度的要求 。

(四)加工效率适中

虽然单头铣边机相比双头或多头铣边机在加工效率上稍显逊色,但对于中小批量生产任务,其加工效率能够满足需求。同时,通过优化加工工艺与合理安排生产计划,可进一步提高生产效率。此外,单头铣边机的能耗相对较低,运行成本较为经济 。

(五)安全性能可靠

设备设置了完善的安全防护装置,如防护罩、急停按钮、过载保护等,可有效防止操作人员受到意外伤害,保障设备的安全稳定运行。在设计上充分考虑人机工程学原理,降低操作人员的劳动强度与疲劳感。

Application Sites, Functions and Performance Characteristics of Single-head Universal Edge Milling Machines

Abstract

This paper thoroughly explores the application sites, core functions, and performance characteristics of single-head universal edge milling machines. By analyzing their application scenarios in industries such as boiler and pressure vessel manufacturing, shipbuilding, electric power, petroleum, chemical machinery, and construction machinery manufacturing, where they are widely used for the groove processing of various low-carbon steel plates, stainless steel plates, and aluminum plates before welding, and can achieve one-time milling forming for bevel edges, straight edges, and U-shaped grooves, etc., this paper expounds their crucial role in material edge processing. It also deeply analyzes the performance characteristics from dimensions such as equipment structure, processing capacity, and operation convenience, providing a reference basis for relevant enterprises to reasonably select and efficiently use this equipment, helping to improve production efficiency and processing quality. Compared with edge planers, it has the advantages of lower price, lower energy consumption, higher efficiency, higher finish, and convenient operation and maintenance.

Keywords

Single-head universal edge milling machine; Application sites; Functions; Performance characteristics

I. Introduction

In modern industrial production, the processing quality of material edges directly affects the overall performance and assembly accuracy of products. As a common edge processing equipment, the single-head universal edge milling machine plays an important role in many industrial fields due to its flexibility and versatility. A deep understanding of its application sites, functions, and performance characteristics helps enterprises to reasonably allocate equipment according to their own production needs, optimize production processes, and enhance product competitiveness.

II. Application Sites

(I) Metal Processing Industry

Single-head universal edge milling machines are widely used in the processing of metal plates and profiles. For steel plate processing enterprises, when producing various metal components, the edges of steel plates need to be processed. For example, there are defects such as burrs and oxide scales on the edges of steel plates after cutting. Single-head universal edge milling machines can remove these defects, making the edges flat and smooth, and preparing for subsequent processes such as welding and bending. In the processing of stainless steel products, whether it is kitchenware, decorative parts, or industrial equipment parts, processing the edges with an edge milling machine can improve the appearance and precision of the products.

(II) Machinery Manufacturing Field

During the manufacturing process of mechanical parts, the edges of many parts require precise processing. Single-head universal edge milling machines can be used for the edge milling of parts such as gears, flanges, and shafts, removing machining allowances, ensuring the dimensional accuracy and surface quality of parts, and meeting assembly requirements. For example, in the manufacturing of reducers, the edge processing of the casing directly affects the sealing performance. The edge milling machine can precisely process edges that meet the standards, ensuring no leakage during the operation of the equipment.

(III) Steel Structure Engineering

The construction of steel structure buildings is inseparable from the processing of a large amount of steel. Single-head universal edge milling machines can process the edges of components such as steel beams and columns, fabricate welding grooves, and improve the welding quality and structural stability. In bridge construction, the splicing of steel beams requires high-precision edge processing. The edge milling machine can ensure the consistency of groove angles and dimensions, enhancing the load-bearing capacity of the bridge structure.

(IV) Pressure Vessel Manufacturing

The safety requirements of pressure vessels are extremely high, and strict control is required for the processing accuracy of material edges. Single-head universal edge milling machines can mill the edges of steel plates used for pressure vessels, remove surface defects, and process appropriate welding grooves to ensure the strength of welding joints and meet the manufacturing standards of pressure vessels.

III. Functions

(I) Edge Trimming

Effectively remove burrs, rough edges, slag, and uneven parts generated during previous processing (such as cutting and forging) of materials, making the material edges smooth and regular, avoiding scratching operators or affecting the assembly of other components during subsequent processing or use.

(II) Groove Processing

According to different welding process requirements, various shapes and angles of welding grooves such as V-shaped, U-shaped, and X-shaped can be processed. A reasonable groove design can increase the fusion area of the weld, improve the welding quality, reduce welding deformation and defects, and ensure the strength and reliability of the welding joint.

(III) Dimensional Accuracy Control

Through a precise positioning and feeding system, ensure that the processed dimensions of the material edges meet the requirements of the design drawings, and control the dimensional error within a very small range. For some parts with high precision requirements, the edge milling machine can gradually reach the specified dimensions through multiple milling operations to meet the requirements of high-precision processing.

(IV) Surface Quality Improvement

Through milling processing, reduce the surface roughness of the material edges, improve the surface finish, and enhance the appearance quality of the materials. For products with high appearance requirements, good surface quality helps to enhance the market competitiveness of the products.

IV. Performance Characteristics

(I) Compact Structure and Strong Versatility

The single-head universal edge milling machine has a simple structural design and occupies a small area, making it suitable for production workshops of various scales. It can adapt to the processing of various materials (such as carbon steel, stainless steel, alloy steel, etc.) and workpieces of different shapes and sizes by replacing tools of different specifications and adjusting processing parameters, meeting diversified production needs, especially suitable for small-batch and multi-variety processing scenarios.

(II) Simple Operation and Easy Maintenance

The equipment is equipped with an intuitive operation interface and control panel, and operators can master the operation method proficiently after simple training. Its mechanical structure and control system are relatively simple, with a reasonable layout of components, facilitating daily inspection, maintenance, and repair work. The tool replacement process is simple and can be completed quickly, reducing downtime and improving equipment utilization.

(III) High Processing Precision

Precision guide rails, lead screws and other transmission components are used, combined with a high-precision positioning system, which can ensure the precision of milling processing. During the processing, through the control of stable feed speed and tool rotation speed, processing errors can be effectively reduced, and high-precision processing of indicators such as flatness, straightness, and perpendicularity can be achieved to meet the precision requirements of parts in general industrial production.

(IV) Moderate Processing Efficiency

Although the processing efficiency of single-head edge milling machines is slightly inferior to that of double-head or multi-head edge milling machines, for small and medium batch production tasks, their processing efficiency can meet the requirements. At the same time, the production efficiency can be further improved by optimizing the processing technology and reasonably arranging the production plan. In addition, single-head edge milling machines have relatively low energy consumption and economical operation costs.

(V) Reliable Safety Performance

The equipment is equipped with a complete set of safety protection devices, such as protective covers, emergency stop buttons, and overload protection, which can effectively prevent operators from accidental injuries and ensure the safe and stable operation of the equipment. The ergonomic principles are fully considered in the design to reduce the labor intensity and fatigue of operators

五、XBJ-C系列单头铣边机技术参数(echnical Parameters of Single-head Edge Milling Machine):


序号NO项目相关技术参数
1有效铣削长度(mm)40006000900012000140001600018000
2加工钢板厚度(mm)6-140(也可根据用户订制)
3铣削角度(°)0-45 可订制0-90
4快进快退速度(mm)0-2200(采用变频无极调速)
5铣削速度(mm/min)O--1000mm(由板材材质决定铣削速度)
6一次最大铣削斜边宽度(mm)30mm
7升降电机功率(KW)0.55
8加工表面粗糙度Ra3.2-6.3
9铣削主轴转速(mm/min)580转(铣边机专用铣头)也可配置变频调速
10液压压料缸数(只)9131925293337
11托料架只数(只)571012141618
12压料台距地面高度(mm)900
13进给电机功率(KW1.5变频调速(双级摆线针轮减速机)
14铣削电机功率(KW5.5(也可根据用户要求配置)
15油泵电机功率(KW5.5
 16  液压系统压力(兆帕)3.5












本资料所列数据为参考数据,如与机床实际数据不符,应以机床实际数据为准,以上参数如有变动,恕不另行通知,本公司保留对此资料的最终解释权!

The data listed in this material are for reference. In case of any discrepancy with the actual data of the machine tool, the actual data of the machine tool shall prevail.


Any changes to the above parameters will not be separately notified, and our company reserves the right to the final interpretation of this material!
