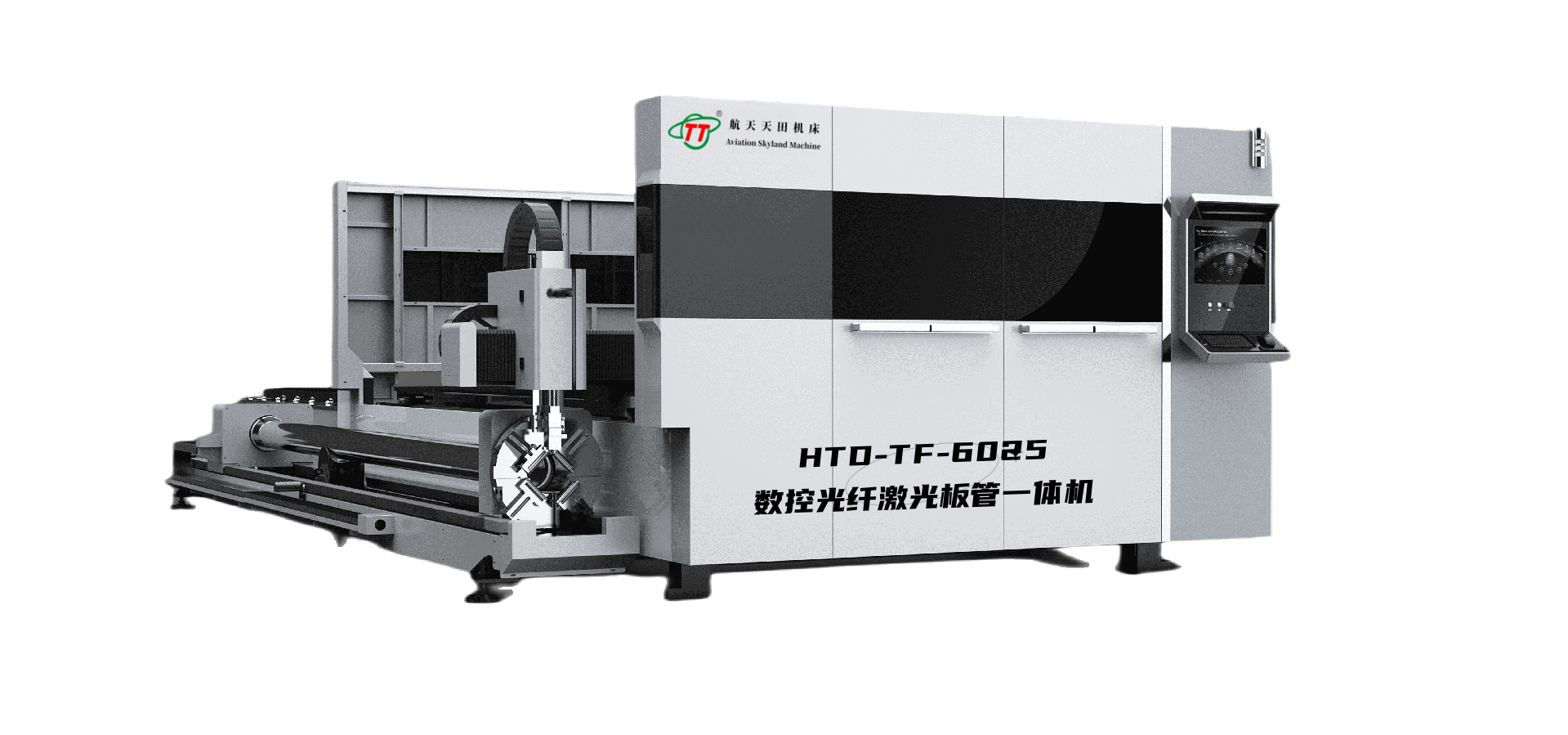

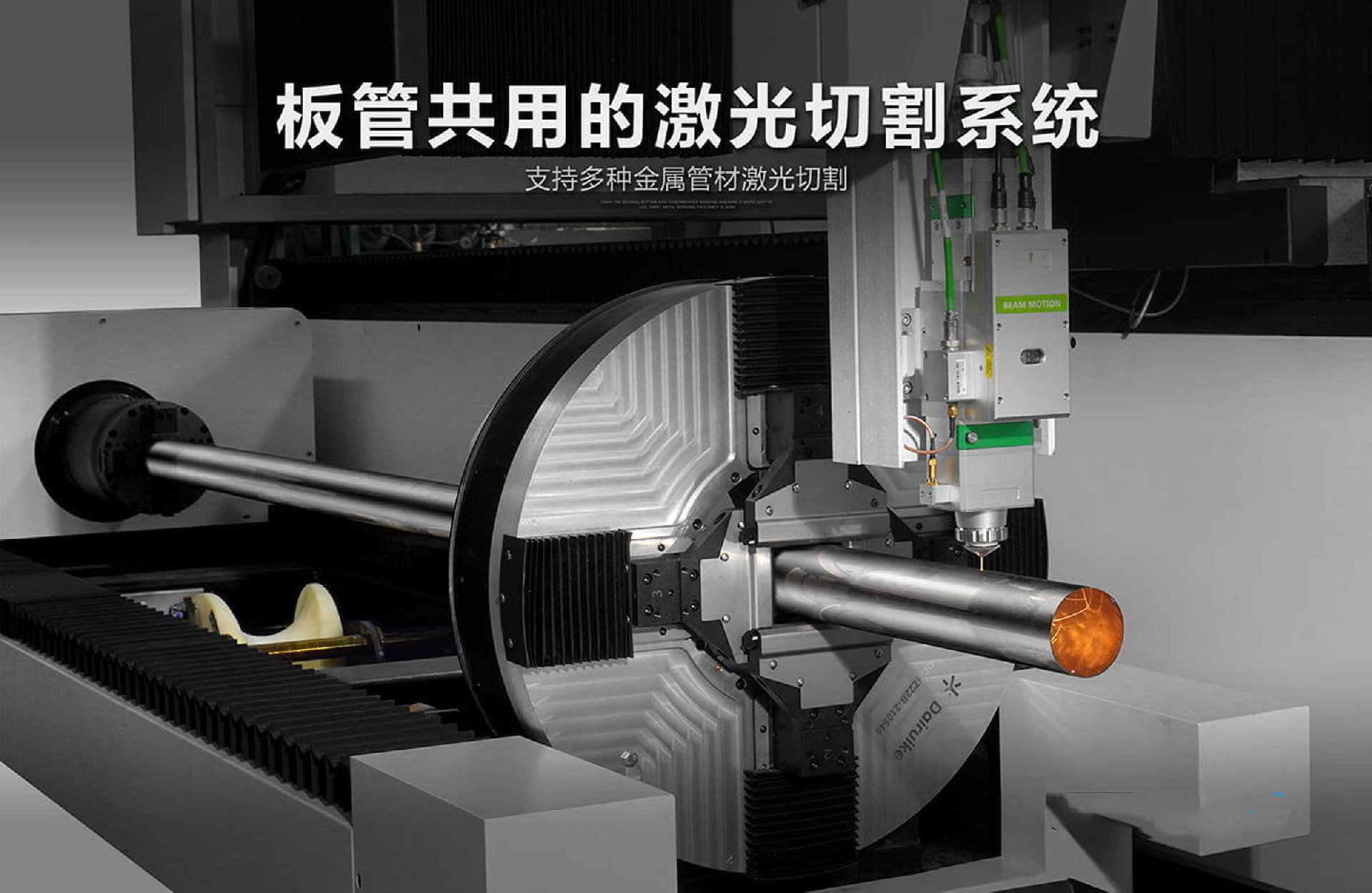

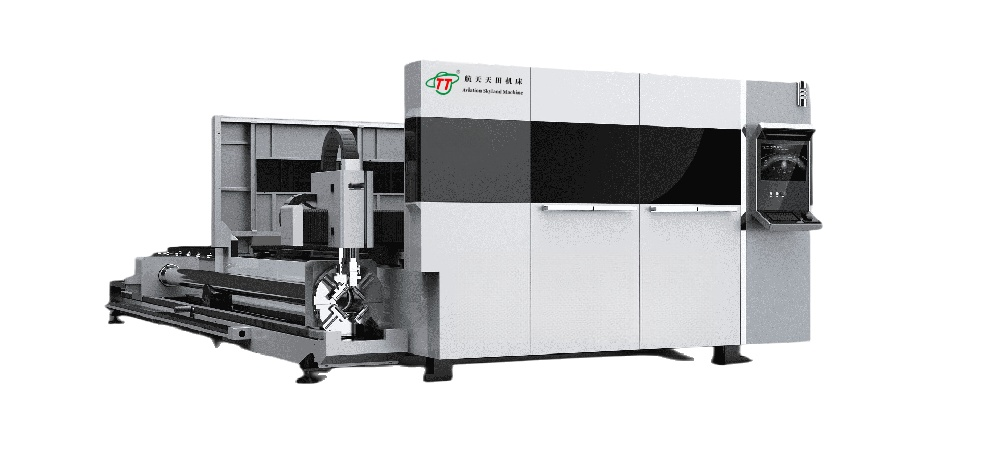

HTD-TF数控光纤激光板管一体机(CNC Fiber Laser Plate and Tube Integrated Machine)

HTD-TF数控光纤激光板管一体机(CNC Fiber Laser Plate and Tube Integrated Machine)

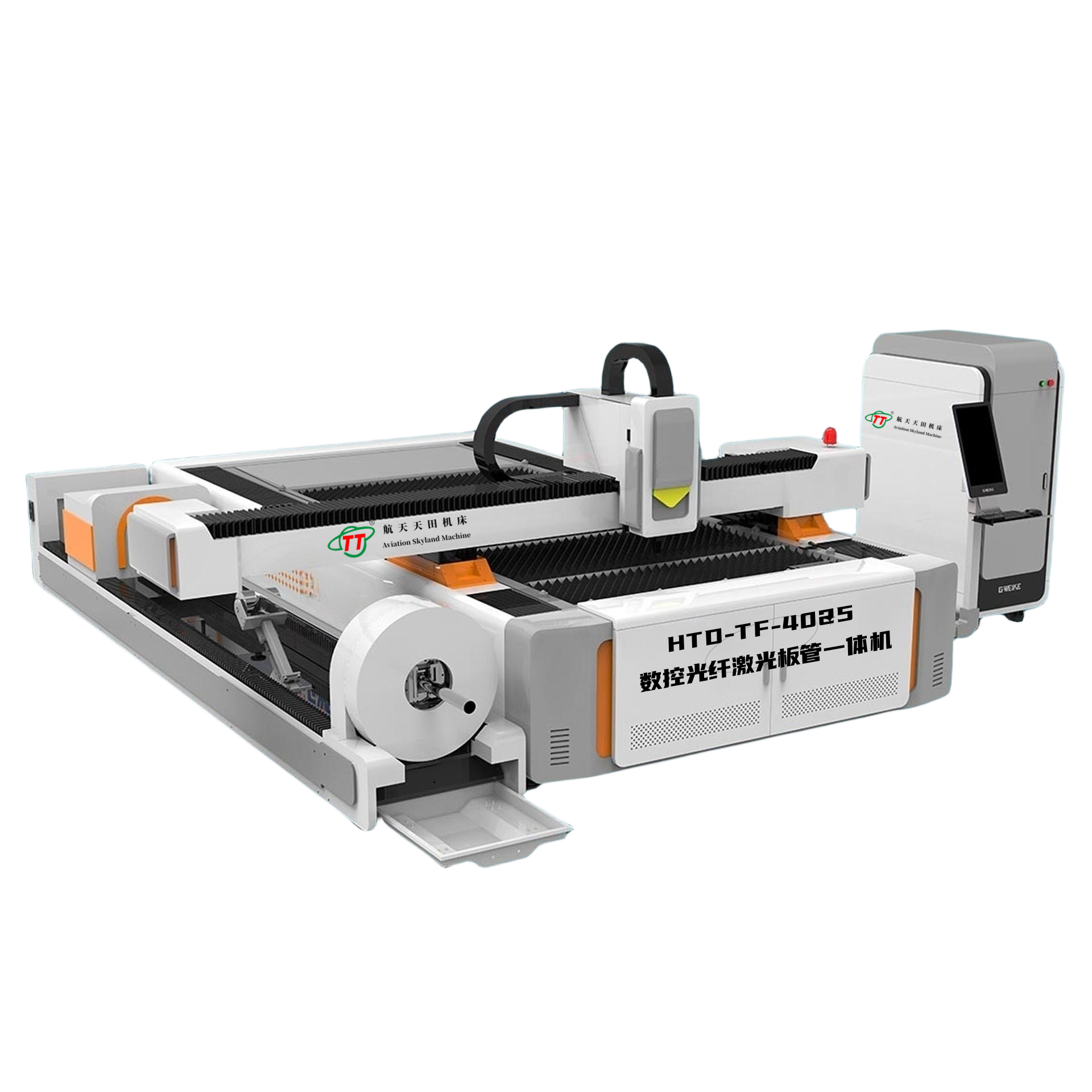

HTD-TF数控光纤激光板管一体机(CNC Fiber Laser Plate and Tube Integrated Machine)

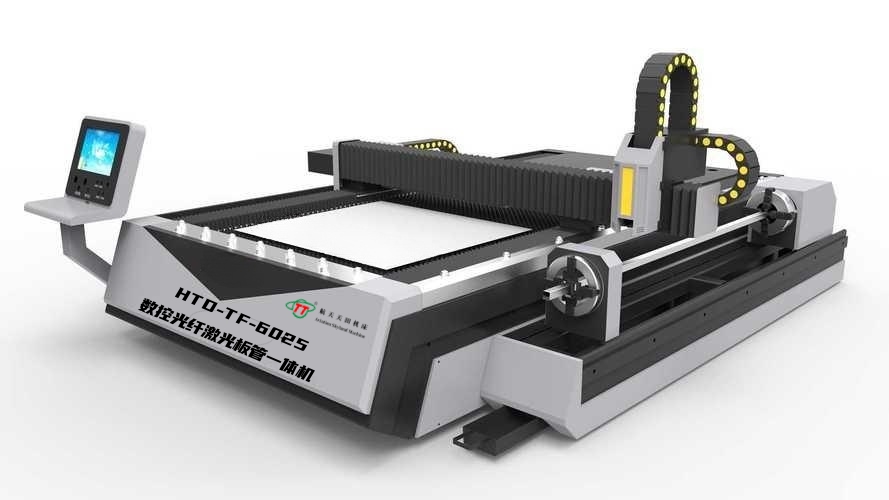

HTD-TF数控光纤激光板管一体机(CNC Fiber Laser Plate and Tube Integrated Machine)

服务热线: 13905146213
产品简介 / Introduction


产品简介  (Product Introduction):

一、板管一体机的优点是在原有光纤激光切割机的基础上增加切管功能,适应现代化流水作业使之快捷、便利作业优势:
1)、卓越的光束质量:聚焦光斑更小,切割线条精细,工作效率高,加工质量好;
2)、较高的切割速度:是同等功率CO2激光切割机的2倍;
3)、较高的稳定性:采用IPG光纤激光器或锐科光纤激光器,性能稳定,关键部件使用寿命可达10万小时;
4)、较高的电光转换效率:光纤激光切割机比CO2激光切割机电光转换效率高3倍,节能环保;
5)、较低的使用成本:整机耗电量仅为同类CO2激光切割机的20-30%;
6)、较低的维护成本:无激光器工作气体;光纤传输,无需反射镜片;可节约大量维护成本;
7)、产品操作维护方便:光纤传输,无需调整光路;

8)、较强的柔性导光效果:体积小巧,结构紧凑,易于柔性加工要求。

一. The advantage of the plate and tube integrated machine is that it adds a tube cutting function on the basis of the original fiber laser cutting machine, adapting to modern assembly line operations and making the work faster and more convenient. Its advantages are as follows:

1. Excellent beam quality: The focused spot is smaller, the cutting lines are fine, the work efficiency is high, and the processing quality is good.

2. High cutting speed: It is twice as fast as a CO2 laser cutting machine of the same power.

3. High stability: Using IPG fiber lasers or Ruike fiber lasers, the performance is stable, and the service life of key components can reach up to 100,000 hours.

4. High electro-optical conversion efficiency: The electro-optical conversion efficiency of the fiber laser cutting machine is three times higher than that of the CO2 laser cutting machine, which is energy-saving and environmentally friendly.

5. Low usage cost: The power consumption of the whole machine is only 20-30% of that of similar CO2 laser cutting machines.

6. Low maintenance cost: There is no working gas for the laser; with fiber optic transmission, there is no need for reflection lenses, which can save a large amount of maintenance costs.

7. Convenient operation and maintenance of the product: With fiber optic transmission, there is no need to adjust the optical path.

8. Strong flexible light guiding effect: It is small in size, compact in structure, and easy to meet the requirements of flexible processing.

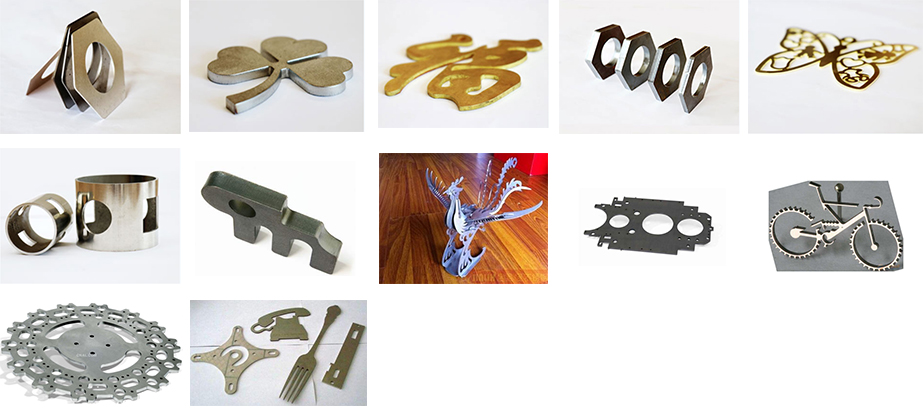

   二、 样品效果图(Sample effect pictures:):


三、技术优势 (Technical Advantages

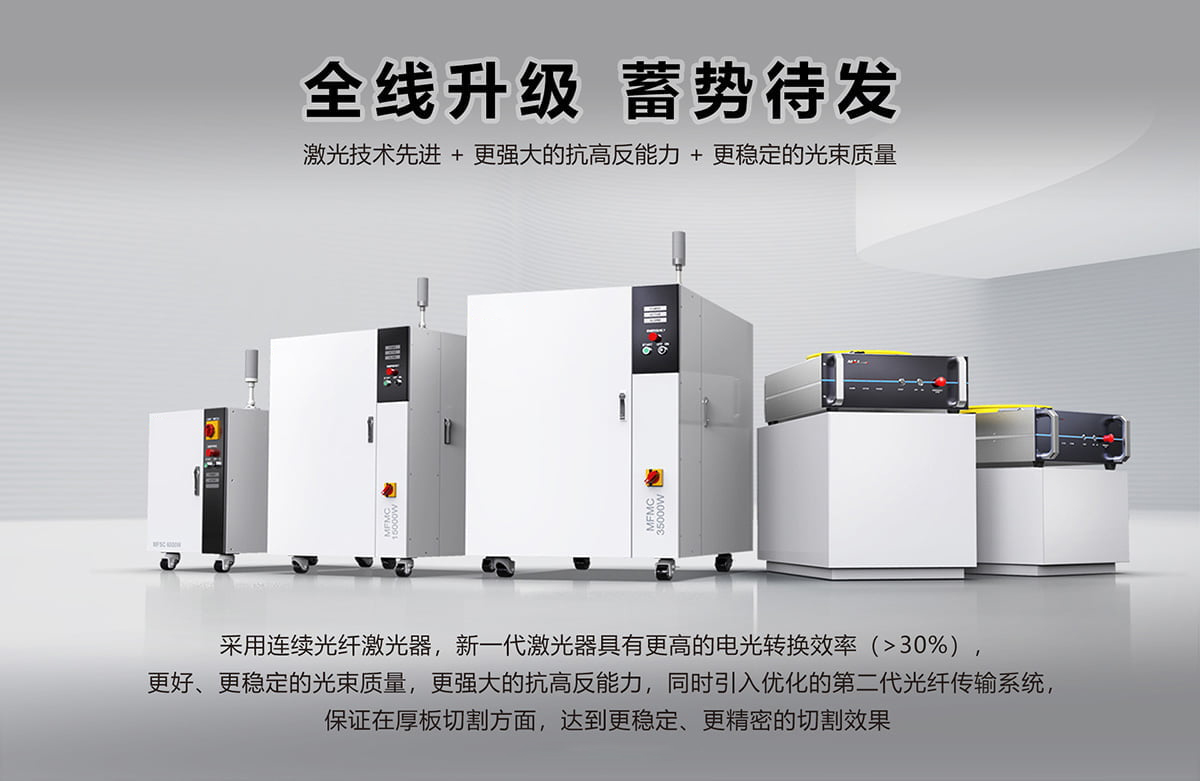

1、采用IPG光纤激光器或锐科光纤激光器和激光电源
IPG光纤激光器或锐科光纤激光器,模块化和冗余设计;体积小巧,重量轻,便于移动;易于集成,其性能稳定、产品整体质量得到安全保障。

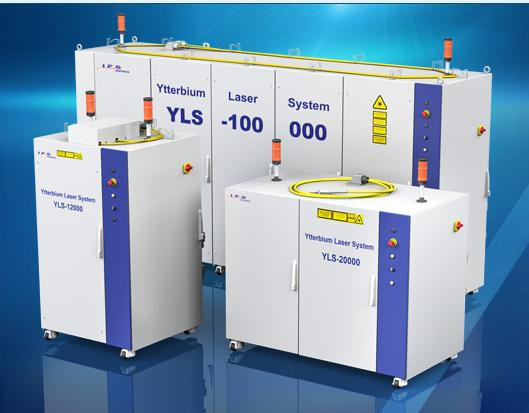

1. Adopt imported IPG fiber lasers or Raycus fiber lasers and laser power supplies.

The IPG fiber lasers or Raycus fiber lasers feature modular and redundant designs. They are small in size and light in weight, making them easy to move. They are also easy to integrate. With stable performance, the overall quality of the products is safely guaranteed.



(图片仅供参考,以实物为准)(The pictures are for reference only, and the actual products shall prevail.)
四、光纤激光器的主要特点Main Characteristics of the Fiber Laser

1、主要基本功能Main Features of Fiber Lasers

1) 光纤激光器电-光转化效率高,转换效率达30%以上,可大幅度节约工作时的耗电,节省运行成本,达到较高的生产效率;

2) 激光器运行时仅仅需要电能,不需要产生激光的额外气体,具有较低的运行和维护费用;
3) 光纤激光器采用半导体模块化和冗余设计,谐振腔内无光学镜片,不需要启动时间,具有免调节、免维护、高稳定性的优点,降低了配件成本和维护的时间,这是传统激光器无法比拟的;
4) 光纤激光器的输出波长为1.06微米,是CO2波长的1/10,输出的光束质量好,功率密度高,有利于金属材料的吸收,具有卓越的切割、焊接能力,从而使加工的费用降低;
5) 整机光路由光纤传输,不需要复杂的反射镜等导光系统,光路简单,结构稳定,外光路免维护;
6) 光通过光纤导出,使机械系统的设计变得非常简单,非常容易与机器人或多维工作台集成;
7) 激光器加上光闸后可以一器多机,通过光纤分光,分成多路多台同时工作,易于扩展功能,升级方便、简单;
8) 光纤激光器体积小,重量轻,工作位置可移动,占地面积小;

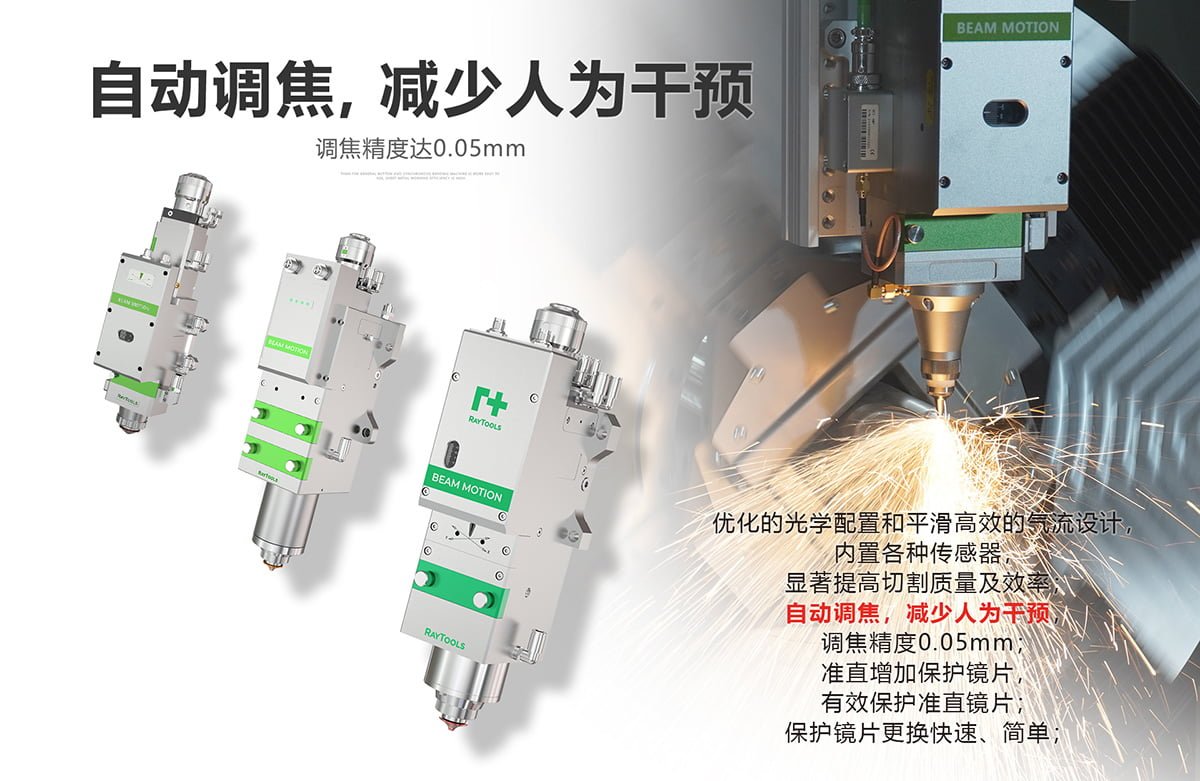

2、自动变焦激光头
1)焦点可自动调节,适用多种焦距;
2)电容式传感、全自动随动系统;
3)采用复合镜片、内置水冷结构;
4)准直和聚焦组件的双水冷恒温保证;
5)采用抽屉式镜座,更换保护镜片快速; 平滑高效气流设计;
6)适配各种光纤激光器;
7)短、长焦距通用,可实现薄或厚板良好的切割效果;
8)全部配备准直保护镜,更好的防护准直镜;
9)QBH圆周位置可调,保证每台QBH红点朝外,方便光纤头的插拔;

10)焦点位置可视窗口,确保输入焦点与输出焦点准确一致;

1. The fiber laser has a high electro-optical conversion efficiency, with the conversion efficiency reaching over 30%. It can greatly save power consumption during operation, reduce operating costs, and achieve high production efficiency.

2. When the laser operates, it only requires electrical energy and does not need additional gases to generate the laser, resulting in low operation and maintenance costs.

3. The fiber laser adopts a semiconductor modular and redundant design. There are no optical lenses in the resonant cavity, and it does not require a start-up time. It has the advantages of being free from adjustment, maintenance-free, and highly stable, reducing the cost of accessories and maintenance time, which is unparalleled by traditional lasers.

4. The output wavelength of the fiber laser is 1.06 micrometers, which is 1/10 of the wavelength of CO2. The output beam has good quality and high power density, which is conducive to the absorption of metal materials and has excellent cutting and welding capabilities, thus reducing the processing cost.

5. The optical path of the whole machine is transmitted through optical fibers, eliminating the need for complex light guiding systems such as mirrors. The optical path is simple, the structure is stable, and the external optical path is maintenance-free.

6. The light is exported through optical fibers, making the design of the mechanical system very simple and very easy to integrate with robots or multi-dimensional workbenches.

7. After adding a shutter to the laser, one laser can serve multiple machines. Through fiber optic beam splitting, it can be divided into multiple channels for multiple machines to work simultaneously, which is easy to expand functions and convenient and simple for upgrading.

8. The fiber laser is small in size, light in weight, and its working position can be moved, occupying a small floor area.

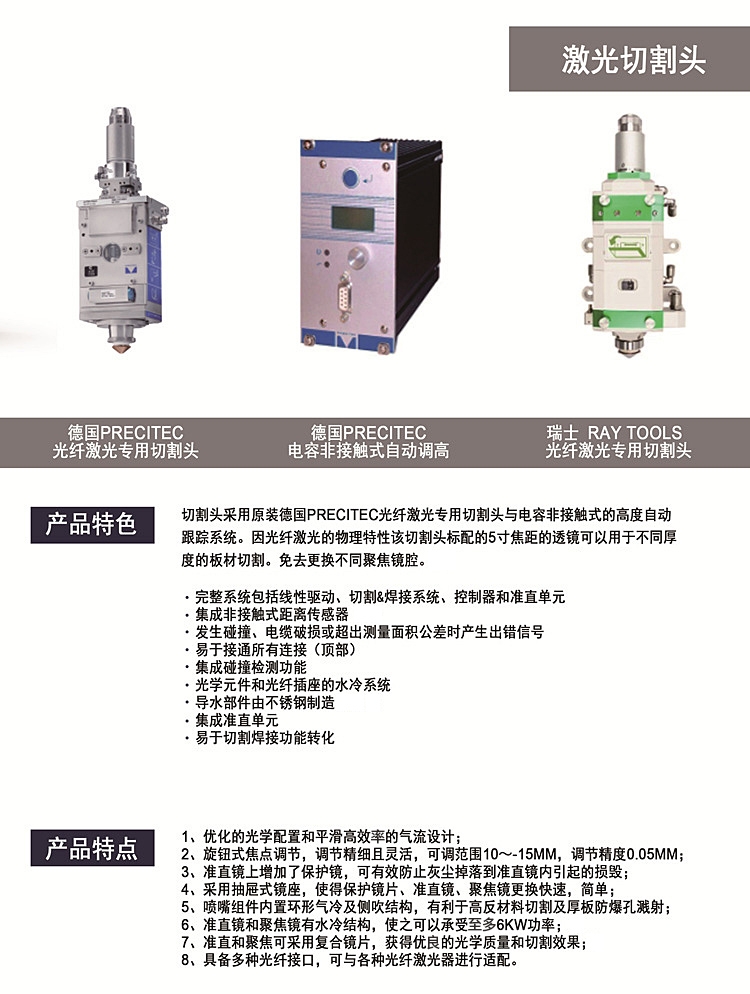

2、自动变焦激光头(Automatic Zoom Laser Head)
1)焦点可自动调节,适用多种焦距;
2)电容式传感、全自动随动系统;
3)采用复合镜片、内置水冷结构;
4)准直和聚焦组件的双水冷恒温保证;
5)采用抽屉式镜座,更换保护镜片快速; 平滑高效气流设计;
6)适配各种光纤激光器;
7)短、长焦距通用,可实现薄或厚板良好的切割效果;
8)全部配备准直保护镜,更好的防护准直镜;
9)QBH圆周位置可调,保证每台QBH红点朝外,方便光纤头的插拔;

10)焦点位置可视窗口,确保输入焦点与输出焦点准确一致;

2. Automatic Zoom Laser Head

1). The focal point can be automatically adjusted, suitable for multiple focal lengths.

2). Capacitive sensing, fully automatic follow-up system.

3). Adopting composite lenses and an internal water cooling structure.

4). Double water cooling and constant temperature guarantee for the collimation and focusing components.

5). Using a drawer-type mirror base for quick replacement of protective lenses; Smooth and efficient air flow design.

6). Compatible with various fiber lasers.

7). Universal for short and long focal lengths, capable of achieving good cutting effects for thin or thick plates.

8). All equipped with collimation protective mirrors for better protection of the collimating mirrors.

9). The QBH circumferential position is adjustable, ensuring that the red dot of each QBH faces outward, facilitating the insertion and extraction of the optical fiber head.

10). Visual window for the focal point position to ensure that the input focal point is accurately consistent with the output focal point.

 五、  产品简介  /   性能特点:(Product Introduction / Performance Characteristics:

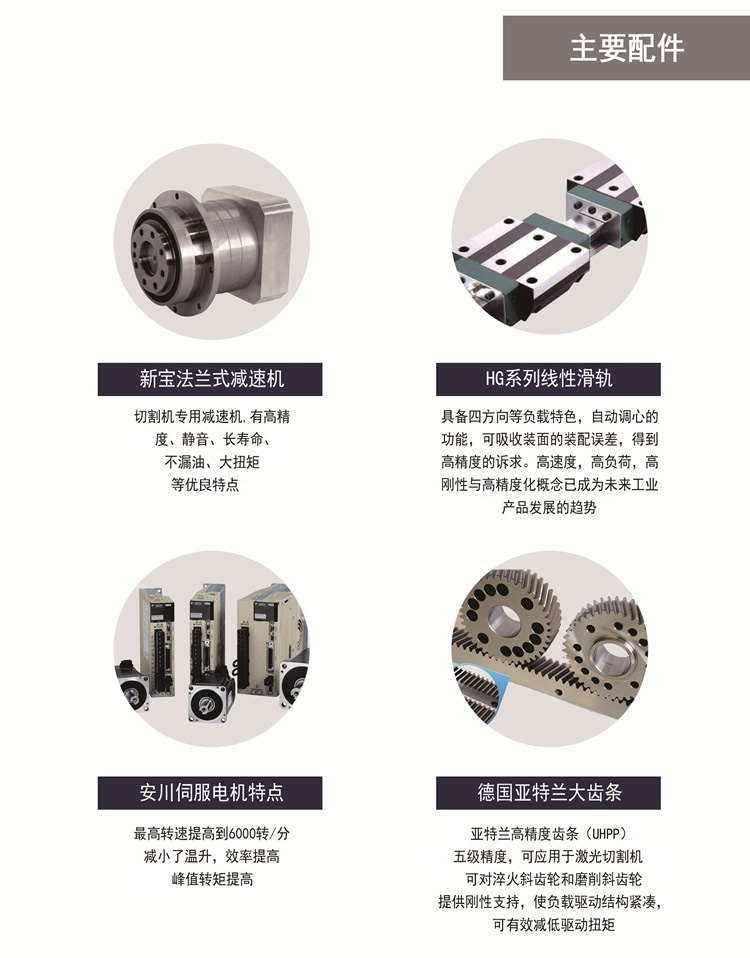

1、双重伺服电机驱动。
2、具有更高的稳定性,更高的速度和更快的加速度
3、全数字化CNC伺服电机通讯。

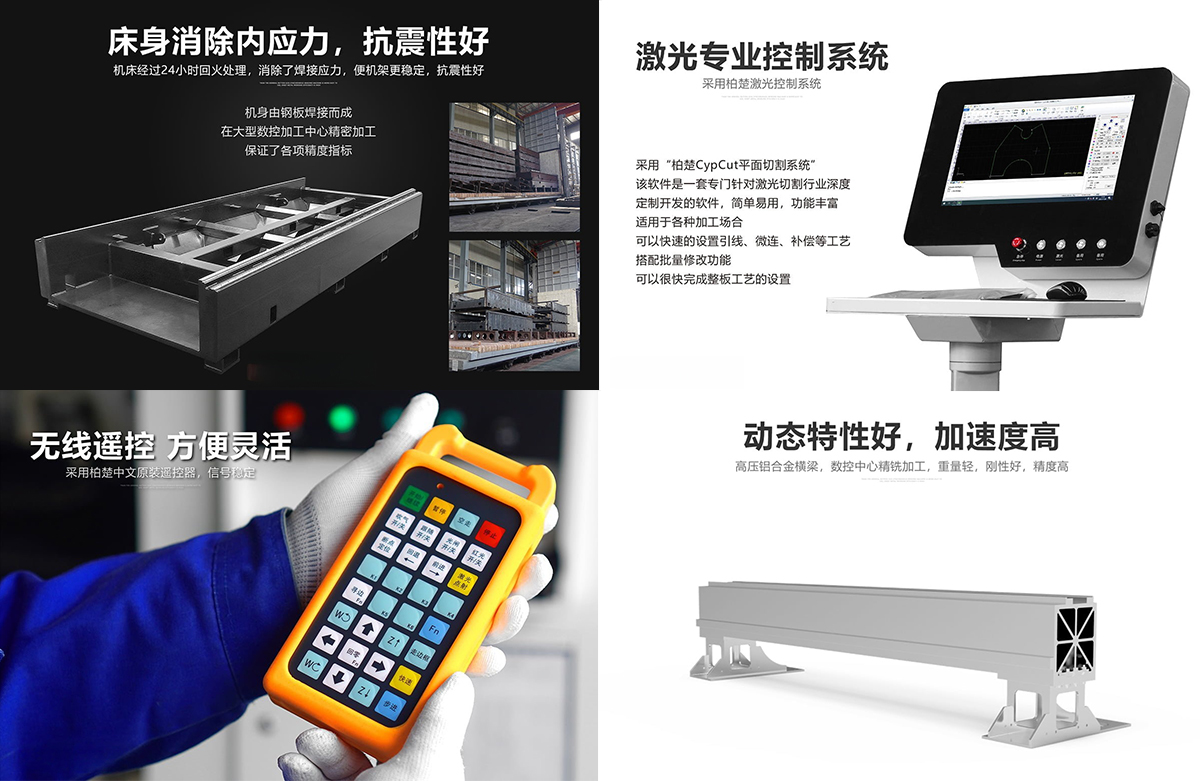

4、该机采用龙门式结构,进口减速机及高精密的直线导轨,传动平稳,精度高,大大的提高了机床的生产效率。
5、机床采用整体焊接结构,退火后进行粗加工,然后进行振动时效处理,可以消除焊接及加工的应力,刚性好、精度高、可保持长时间使用不变形。
6、横梁采用铝合金整体铸造,经两次高温退后后粗加工,再振动时效后,经高精密加工成型,刚性好、重量轻、动态性能好。
7、进口高精度电控比例阀,精确控制切割辅助气体的气压,以达精确的切割效果。
8、激光切割机的基本原理

       激光切割的原理是将激光束聚焦成很小的光点,使焦点处达到很高的功率密度,这是光束输入(由光能转换)的热量远远超过被材料反射,传导或扩散的部份,材料很快加热到气化的温度,蒸发形成孔洞。随着光束和材料相对线性移动,使孔洞形成宽度很窄的切缝。

1. Driven by dual servo motors.

2. It has higher stability, higher speed and faster acceleration.

3. Full-digital CNC servo motor communication.

4. This machine adopts a gantry structure, imported reducers and high-precision linear guides. The transmission is stable and the precision is high, which greatly improves the production efficiency of the machine tool.

5. The machine tool adopts an integral welding structure. After annealing, it is roughly processed, and then undergoes vibration aging treatment. This can eliminate the stress from welding and processing. It has good rigidity, high precision and can maintain its shape without deformation after long-term use.

6. The crossbeam is integrally cast from aluminum alloy. After two high-temperature treatments, it is roughly processed. Then, after vibration aging treatment, it is formed through high-precision processing. It has good rigidity, light weight and excellent dynamic performance.

7. Imported high-precision electronically controlled proportional valve accurately controls the air pressure of the cutting auxiliary gas to achieve an accurate cutting effect.

8. Basic Principle of the Laser Cutting Machine

The principle of laser cutting is to focus the laser beam into a very small spot, so that a very high power density is achieved at the focal point. At this time, the heat input by the light beam (converted from light energy) far exceeds the part that is reflected, conducted or diffused by the material. The material is quickly heated to the gasification temperature, and evaporation forms a hole. As the light beam and the material move linearly relative to each other, the hole forms a very narrow slit.

激光切割的特点:(Characteristics of Laser Cutting:
       1)切缝窄,变形小,精度高,速度快,效率高
       2)激光切割是一种高能量、密度可控性好的无接触加工

       3)相对于冲床,剪板机,它不需要模具,节约了换模具的时间,降低了加工成本。能切割复杂的图形。

1. Narrow cutting seam, small deformation, high precision, fast speed and high efficiency.

2. Laser cutting is a non-contact processing method with high energy and good density controllability.

3. Compared with punch presses and plate shears, it does not require molds, saving the time for changing molds and reducing the processing cost. It is capable of cutting complex graphics.

六、技术参数表(Technical Parameter Table)

设备型号  Equipment Model
HTD-TF-3015
HTD-TF-4015
HTD-TF-4020
HTD-TF-6015
HTD-TF-6020
HTD-TF-6025
加工范围长*宽
Processing Range: Length × Width
3000*1500mm
4000*1500mm
4000*2000mm
6000*1500mm
6000*2000mm
6000*2500mm
加工管直径(mm)
Processing Pipe Length (mm)
≤170
≤170
≤170
≤170
≤170
≤170
加工管长度(mm)
Processing Pipe Diameter (mm)
3010mm
4010mm
4010mm
6010mm
6010mm
6100mm
X轴行程 Travel of X-axis
1505mm
1505mm
2010mm
1505mm
2010mm
2510mm
Y轴行程 Travel of Y-axis
3010mm
4010mm
4010mm
6010mm
6010mm
6100mm
Z轴行程 Travel of Z-axis
300mm
300mm
300mm
300mm
300mm
300mm
X/Y定位精度 Positioning Accuracy of X/Y Axis
±0.05mm
±0.05mm
±0.05mm
±0.05mm
±0.05mm
±0.05mm
X/Y重复定位精度
Repeat Positioning Accuracy of X/Y Axis
±0.03mm
±0.03mm
±0.03mm
±0.03mm
±0.03mm
±0.03mm
X/Y最大加速度 Maximum Speed of X/Y Axis
1.0-1.5G
1.0-1.5G
1.0-1.5G
1.0-1.5G
1.0-1.5G
1.0-1.5G
高度调节 Height Adjustment
平面自动跟踪
(Automatic Planar Tracking)
平面自动跟踪
(Automatic Planar Tracking)
平面自动跟踪
(Automatic Planar Tracking)
平面自动跟踪
(Automatic Planar Tracking)
平面自动跟踪
(Automatic Planar Tracking)
平面自动跟踪
(Automatic Planar Tracking)
最小线宽  Minimum Line Width
0.15mm
0.15mm
0.15mm
0.15mm
0.15mm
0.15mm
工作台最大载重
 Maximum Load Capacity of the Workbench
±0.03mm
±0.03mm
±0.03mm
±0.03mm
±0.03mm
±0.03mm
最大运行速度Maximum Operating Speed
600KG
650KG
650KG
750KG
850KG
900KG
传动系统Transmission System
龙门双驱
(Gantry - type Dual - drive)
龙门双驱
(Gantry - type Dual - drive)
龙门双驱
(Gantry - type Dual - drive)
龙门双驱
(Gantry - type Dual - drive)
龙门双驱
(Gantry - type Dual - drive)
龙门双驱
(Gantry - type Dual - drive)
数控系统
Numerical Control (NC) System
CypCut
CypCut
CypCut
CypCut
CypCut
CypCut
激光器功率 Laser Power
1000W-200000W
1000W-200000W
1000W-200000W
1000W-200000W
1000W-200000W
1000W-200000W
外形尺寸(长*宽*高)m
!Overall Dimensions (Length × Width × Height)
4800*3800*1800(mm)
5800*3800*1800(mm)
5800*3900*1800(mm)
7700*3900*1800(mm)
7800*4300*1800(mm)
7800*4850*1800(mm)

注:本资料所列数据为参考数据,如与机床实际数据不符,应以机床实际数据为准,

以上参数如有变动,恕不另行通知,本公司保留对此资料的最终解释权!

Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.

The above parameters are subject to change without prior notice. Our company reserves the right to the final interpretation of this document!
