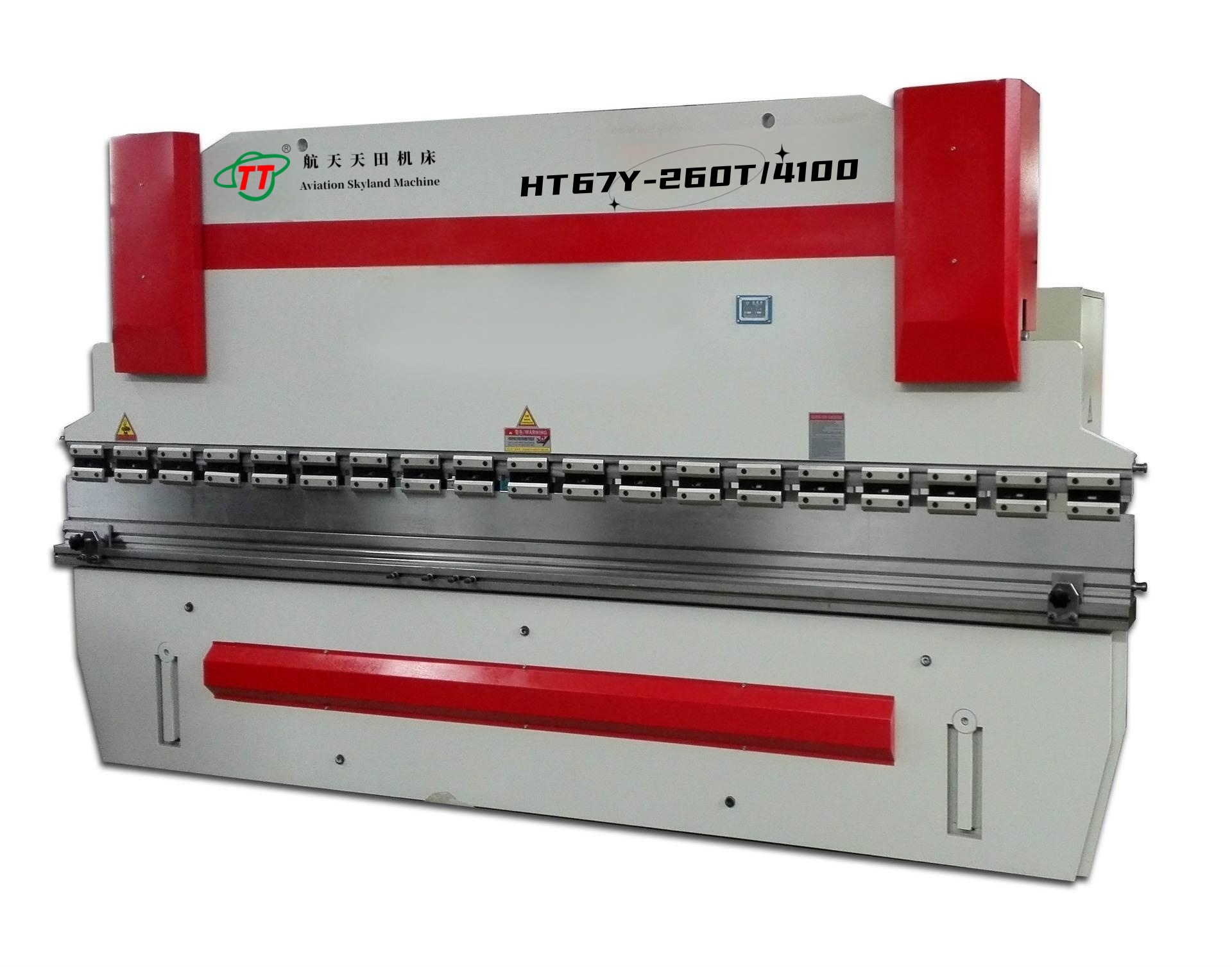

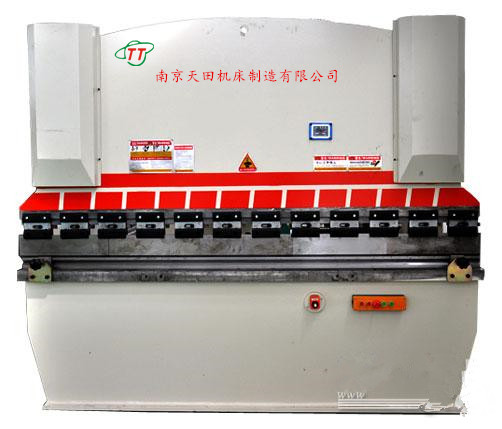

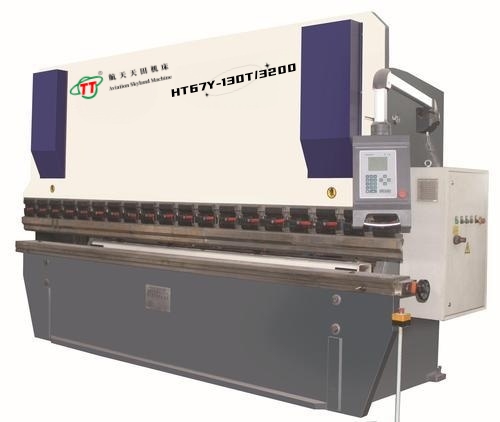

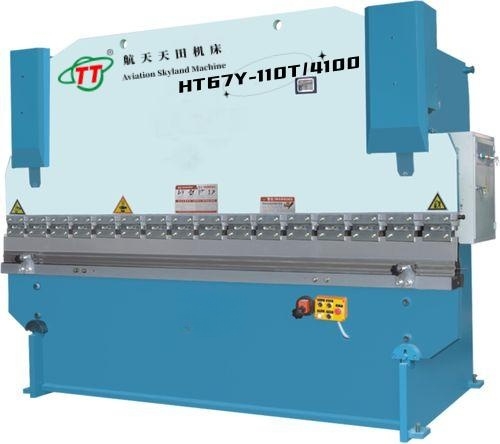

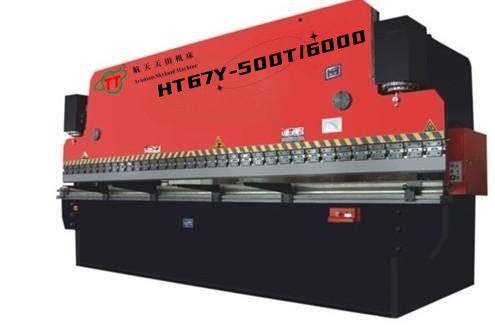

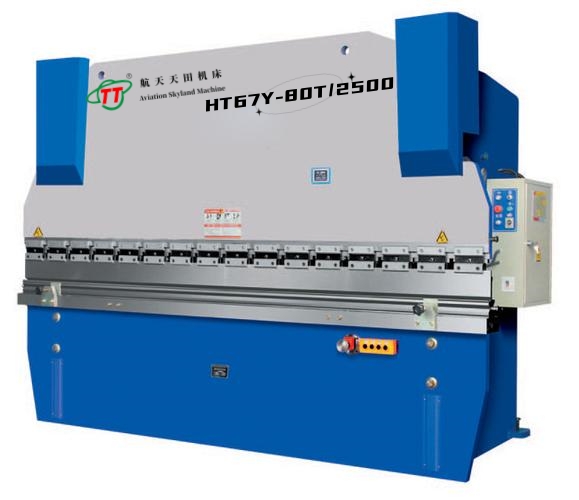

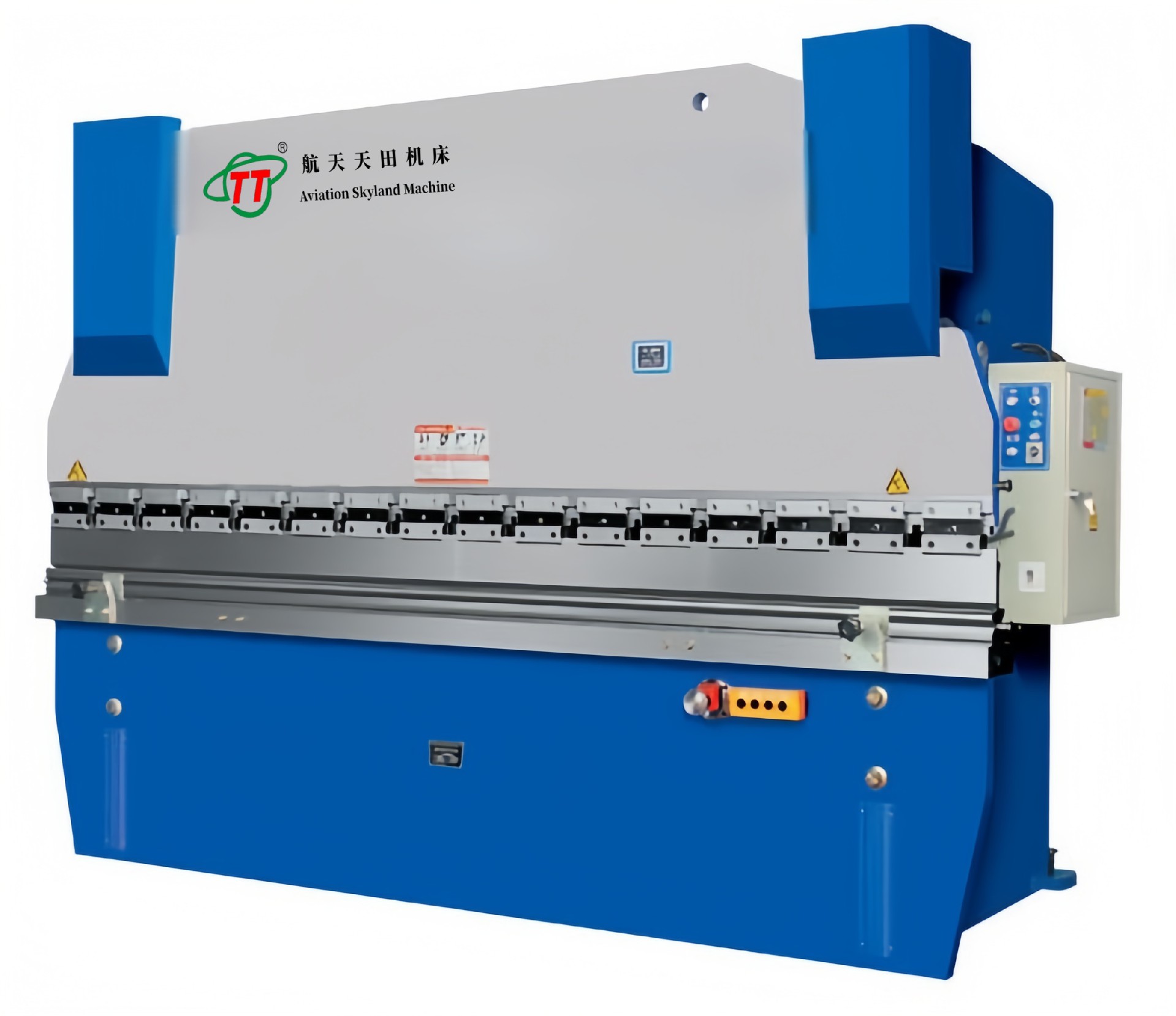

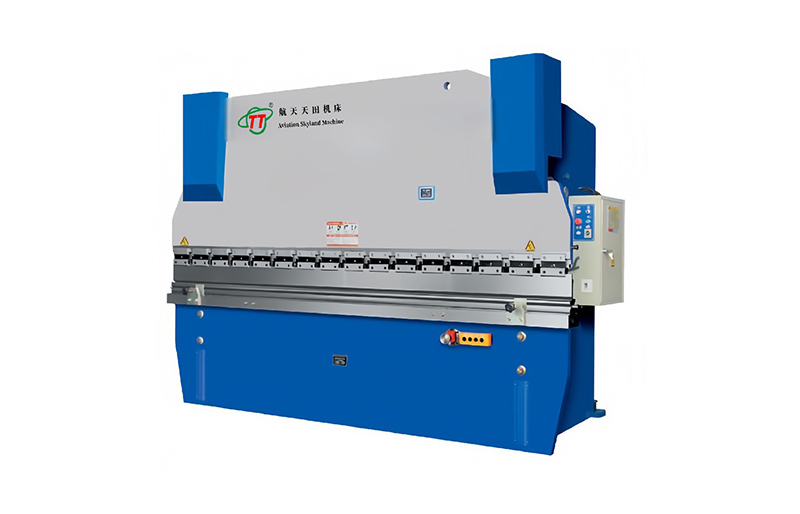

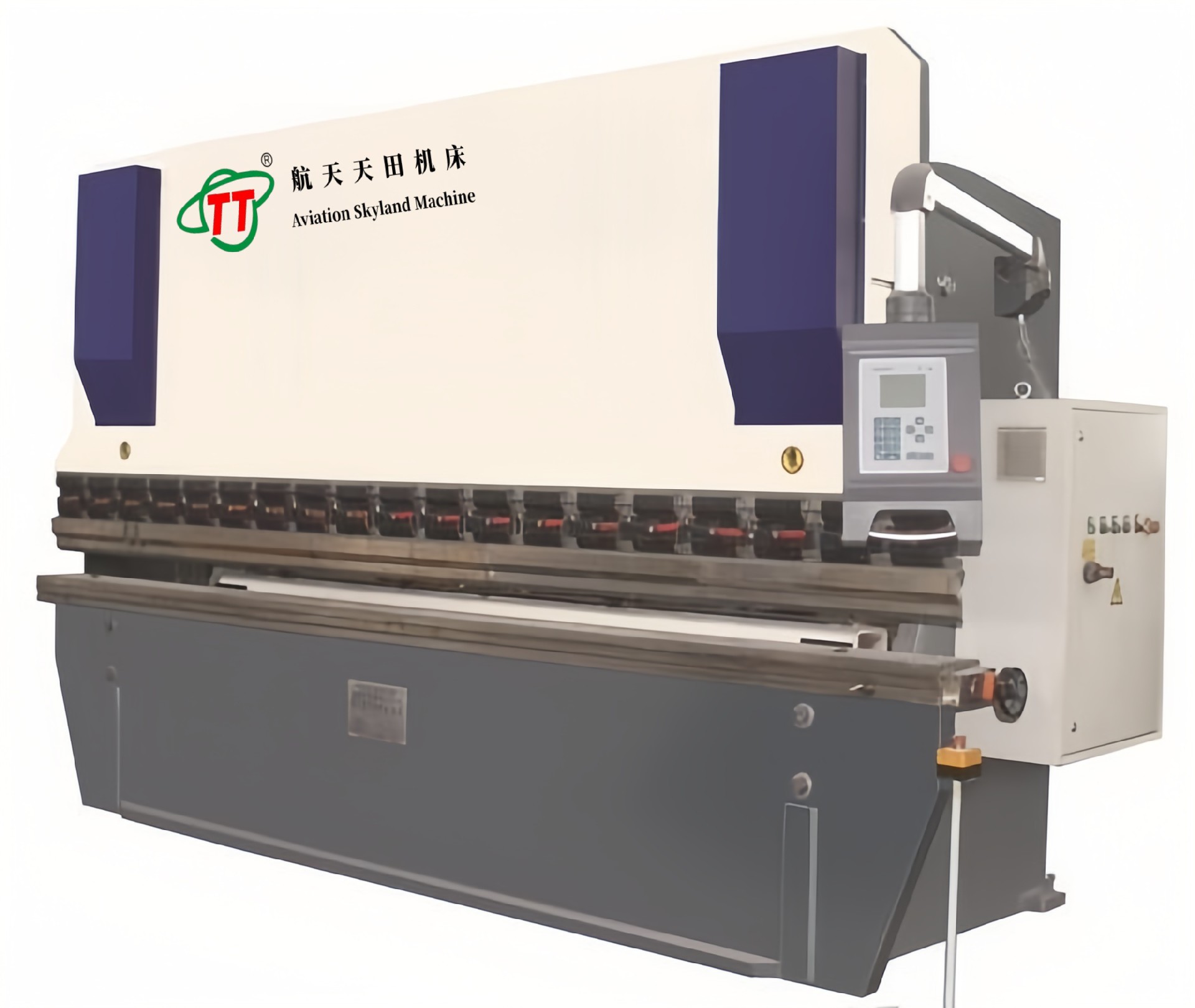

HT67Y系列数显液压折弯机（Digital Display Hydraulic Bending Machine）

服务热线： 13905146213

产品简介 / Introduction


一、HT67Y液压折弯机性能与特点

1、采用全钢焊接结构，振动消除应力，折弯机强度高，刚性好；

2、液压上传动，平稳可靠；

3、机械挡块，扭轴同步，精度高；

4、后挡料距离、上滑块行程电动调节；

5、手动微调，数字显示；

6、上模配有挠度补偿机构。

I. Performance and Characteristics of HT67Y Hydraulic Plate Bending Machine

It adopts an all-steel welded structure, and the stress is eliminated through vibration. The bending machine features high strength and good rigidity.
Hydraulic upward drive ensures smooth and reliable operation.
With mechanical stoppers and torsion shaft synchronization, it has high precision.
The distance of the rear stop gauge and the stroke of the upper slider can be adjusted electrically.
Manual fine adjustment is available with digital display.
The upper die is equipped with a deflection compensation mechanism.

二、 HT67Y液压板料折弯机技术参数（Technical Parameters of HT67Y Hydraulic Plate Bending Machine）

设备型号	公称力	工作台长度	力柱间距	喉口深度	滑块行程	最大开启高度	主电机功率	机器重量	外型尺寸
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	(Kg)	L×W×H
									(mm)

40/2200	400	2200	1850	250	100	350	5.5	2400	226012001900

40/2500	400	2500	2150	250	100	350	5.5	2600	256012001900

50/2500	500	2500	2150	250	100	350	5.5	3000	256012001900

63/2500	630	2500	2150	250	120	350	5.5	3800	256013402200

63/3200	630	3200	2580	250	120	350	5.5	4600	32601340;2200

80/3200	800	3200	2580	320	120	350	7.5	5500	326014002300

80/4000	800	4000	2980	320	120	350	7.5	6100	406014002300

100/3200	1000	3200	2580	320	130	435	7.5	6700	326014802450

100/4000	1000	4000	2980	320	130	450	7.5	7800	406014802450

125/3200	1250	3200	2580	320	130	435	11	7300	326015202550

125/4000	1250	4000	2980	320	130	435	11	8200	406015202550

160/3200	1600	3200	2580	320	150	470	11	9800	326016002800

160/4000	1600	4000	3000	320	150	470	11	11400	406016002800

160/5000	1600	5000	4000	320	150	470	11	12800	50601700;2900

160/6000	1600	6000	5000	320	150	470	11	14600	606017003000

200/3200	2000	3200	2580	400	200	500	15	12900	326016002800

200/4000	2000	4000	3000	400	200	500	15	14600	406016002800

200/5000	2000	5000	4000	400	200	500	15	16600	506017002900

200/8000	2000	6000	5000	400	200	500	15	18800	606017003000

250/4000	2500	4000	3000	400	200	560	18.5	16500	406017003000

250/5000	2500	5000	4000	400	200	560	18.5	17800	506017003000

250/6000	2500	6000	5000	400	200	560	18.5	19700	606018003000

300/4000	3000	4000	3000	400	250	560	22	20000	406020003000

300/5000	3000	5000	4000	400	250	560	22	23000	506020003100

300/6000	3000	6000	5000	400	250	560	22	26500	606021003200

600/4000	4000	4000	3000	400	250	570	22	23600	406020003100

400/5000	4000	5000	4000	400	250	570	22	27000	506020003200

400/6000	4000	6000	5000	400	250	570	22	30600	606021003300

500/4000	5000	4000	3000	400	250	590	37	27000	406023003500

500/5000	5000	5000	4000	400	250	590	37	31000	506023003500

500/6000	5000	6000	5000	400	250	590	37	35000	606023003600

600/4000	6000	4000	3000	400	250	610	45	31000	406024003600

600/5000	6000	5000	4000	400	250	610	45	36000	506024003600

600/6000	6000	6000	5000	400	250	610	45	41000	606025003700

注：本资料所列数据为参考数据，如与机床实际数据不符，应以机床实际数据为准，

以上参数如有变动，恕不另行通知，本公司保留对此资料的最终解释权！

Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.

The above parameters are subject to change without prior notice. Our company reserves the right of final interpretation of this document
