一、金属打包机产品用途：
金属回收行业：HTYB系列金属打包机可将各种金属废料（边角料、刨花、废钢、废铝、废铜、废不锈钢、报废汽车等）挤压成长方体、八角形体、圆柱体等各种形状的合格炉料，既可降低运输和冶炼成本，又可提高投炉速度。该系列打包机主要适用于钢厂、回收行业，以及有色、黑色金属冶炼行业。主要用于将回收的各种松散金属物料，如易拉罐、铁皮、钢丝等，压缩成紧密的包块，便于运输和存储，同时也提高了金属的回收效率。例如，将大量的废旧易拉罐打包成块，减少占用空间，方便运输到冶炼厂进行再生处理。
废纸、塑料等行业：除了金属回收领域，金属打包机在一些需要对类似物料进行打包处理的行业也有应用。例如，在废纸回收行业，可将废纸压缩成包；在塑料回收行业，将废旧塑料薄膜、塑料瓶等打包成块，便于后续的运输和加工。
仓储物流行业：对于一些形状不规则、体积较大的金属制品或金属零部件，使用金属打包机将其打包固定，可以使其在仓储和运输过程中更加稳固，防止散落和损坏，提高物流效率和安全。
The HTYB series of metal baling machines can extrude various metal scraps (such as edge materials, shavings, scrap steel, scrap aluminum, scrap copper, stainless steel waste, scrapped cars, etc.) into qualified furnace charges in various shapes like cuboids, octagonal bodies, cylinders, etc. This not only reduces transportation and smelting costs but also increases the charging speed into the furnace. This series of baling machines is mainly suitable for steel plants, the recycling industry, as well as the non-ferrous and ferrous metal smelting industries. It is mainly used to compress various loose metal materials recovered, such as aluminum cans, iron sheets, steel wires, etc., into compact bales, which facilitates transportation and storage and also improves the metal recycling efficiency. For example, a large number of waste aluminum cans can be baled into blocks, reducing the occupied space and making it convenient to transport them to the smelting plant for regeneration processing.
In addition to the metal recycling field, metal baling machines are also applied in some industries that require the baling treatment of similar materials. For example, in the waste paper recycling industry, waste paper can be compressed into bales; in the plastic recycling industry, waste plastic films, plastic bottles, etc. can be baled into blocks, which is convenient for subsequent transportation and processing.
For some metal products or metal parts with irregular shapes and large volumes, using metal baling machines to bale and fix them can make them more stable during warehousing and transportation, prevent scattering and damage, and improve logistics efficiency and safety
二、产品特点：
1、所有机型采用液压驱动，可选择手动操作或PLC自动控制。
2、 出包方式有翻包、侧推包、前推包、人工取包等。
3、 多款机型可供选择：不同压力、料箱尺寸、包块尺寸形状。
4、无电源的地方，可配柴油机作动力。
All models are hydraulically driven and can be operated manually or controlled automatically by PLC.
The bale discharging methods include turnover bale discharging, side pushing bale discharging, front pushing bale discharging, and manual bale taking, etc.
Multiple models are available for selection: with different pressures, sizes of material boxes, and shapes of bales.
In places without a power source, a diesel engine can be equipped as the power
三、常见规格（金属压块机 铁屑压块打包机规格分为）：
HTYB-120/HTYB-150/HTYB-150八角型/HTYB-160/HTYB-200/HTYB-250型系列金属压块机

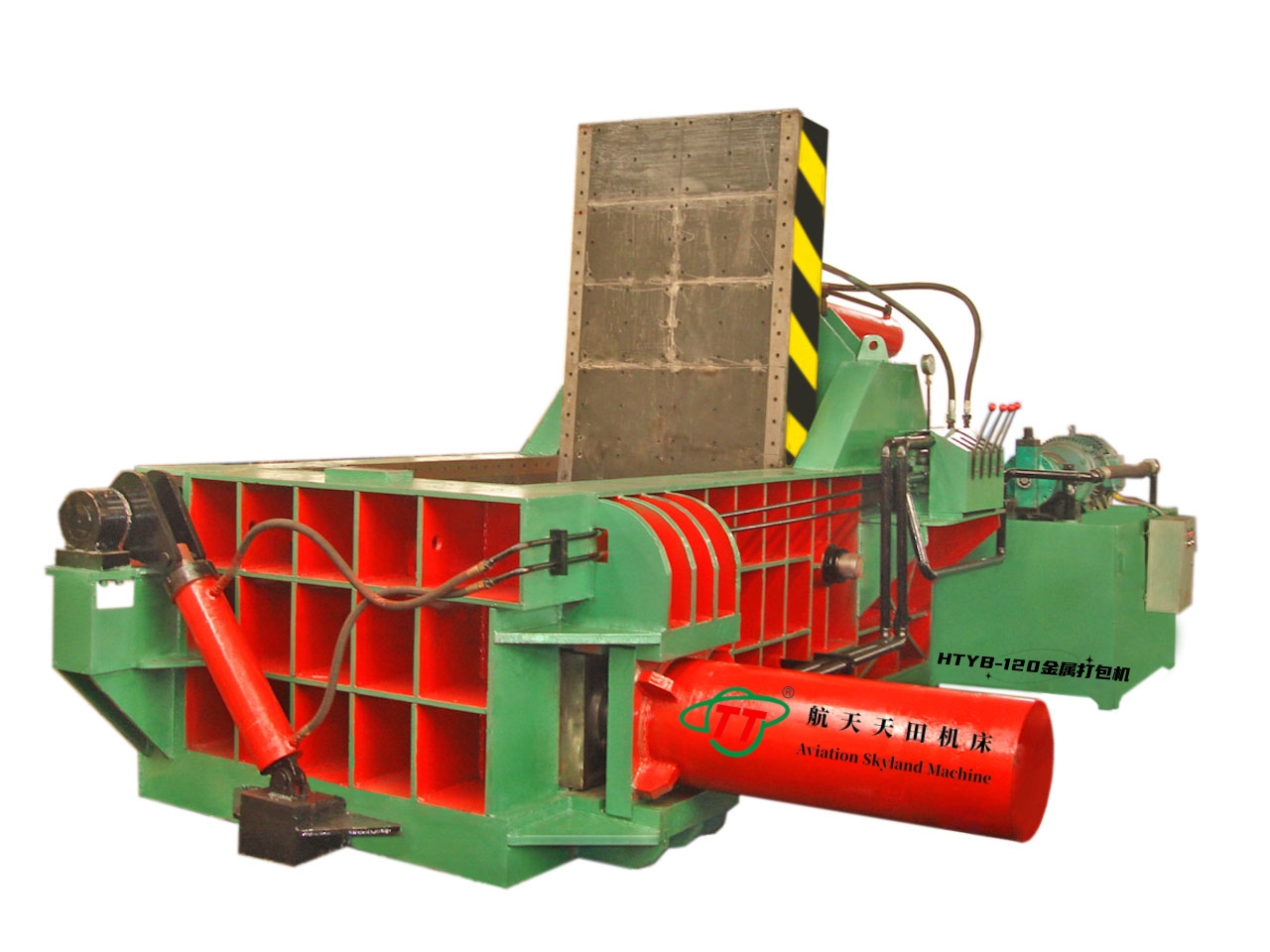

1、HTYB-120型打包机 压块截面180x180mm 铁块重量在70-80斤/块，不超过100斤/块，铝块重量20-30斤/块。
2、HTYB-150型打包机 压块截面:220x220mm 刨花压块重量约70-100斤/块。
3、HTYB-150八角型打包机 压块截面:八角 刨花压块重量约70-100斤/块。

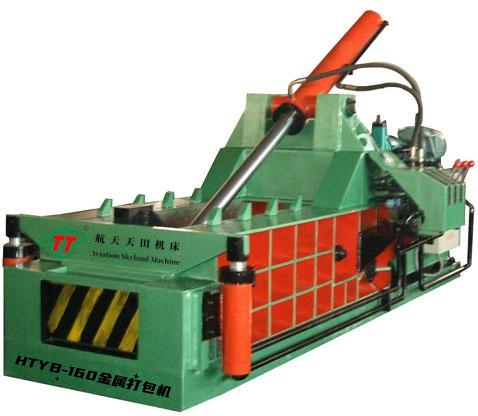

4、HTYB-160型打包机 压块截面250x250mm 铁块重量在150斤/块，不超过200斤/块，铝块重量50-70斤/块。

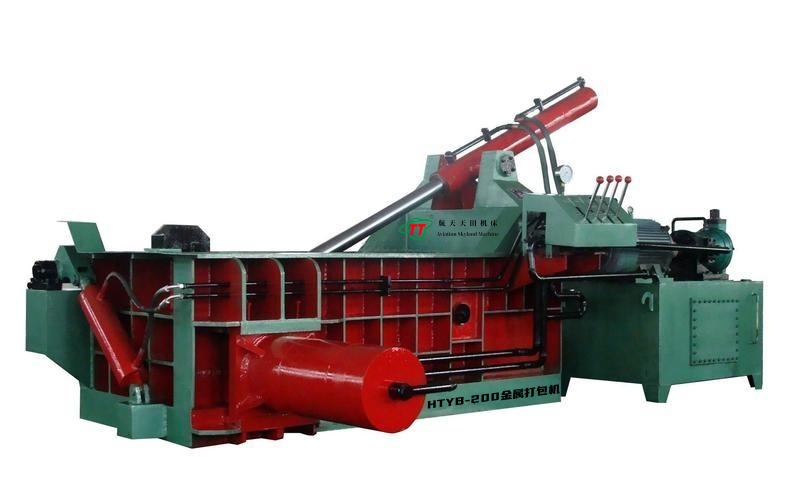

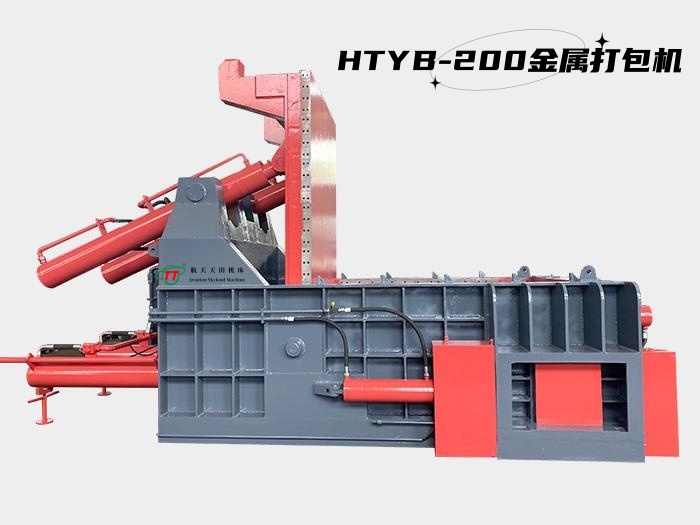

5、HTYB-200型打包机 压块截面300x300mm 铁块重量在250斤/块，不超过300斤/块，铝块重量70-100斤/块。

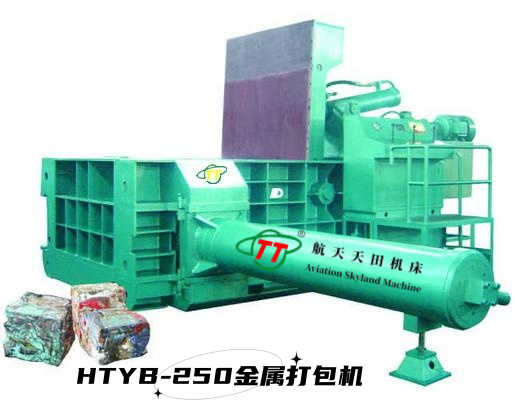

6、HTYB-250型打包机 压块截面:250x250mm 刨花压块重量约70-100斤/块。
HTYB-120/HTYB-150/HTYB-150 Octagonal/HTYB-160/HTYB-200/HTYB-250 series metal briquetting machines
HTYB-120 baling machine: The cross-section of the briquette is 180x180mm. The weight of the iron briquette is 70-80 jin per piece, not exceeding 100 jin per piece, and the weight of the aluminum briquette is 20-30 jin per piece.
HTYB-150 baling machine: The cross-section of the briquette is 220x220mm. The weight of the filings briquette is approximately 70-100 jin per piece.
HTYB-150 Octagonal baling machine: The cross-section of the briquette is octagonal. The weight of the filings briquette is approximately 70-100 jin per piece.
HTYB-160 baling machine: The cross-section of the briquette is 250x250mm. The weight of the iron briquette is 150 jin per piece, not exceeding 200 jin per piece, and the weight of the aluminum briquette is 50-70 jin per piece.
HTYB-200 baling machine: The cross-section of the briquette is 300x300mm. The weight of the iron briquette is 250 jin per piece, not exceeding 300 jin per piece, and the weight of the aluminum briquette is 70-100 jin per piece.
HTYB-250 baling machine: The cross-section of the briquette is 250x250mm. The weight of the filings briquette is approximately 70-100 jin per piece
备注：本资料所列数据为参考数据，如与机床实际数据不符，应以机床实际数据为准，以上参数如有变动，恕不另行通知，本公司保留对此资料的最终解释权！
Remarks: The data listed in this material are for reference. In case of any discrepancy with the actual data of the machine tool, the actual data of the machine tool shall prevail. Any changes to the above parameters will not be separately notified, and our company reserves the right to the final interpretation of this material.
