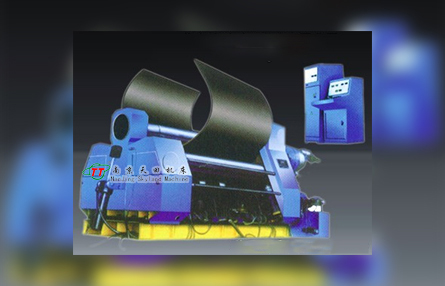

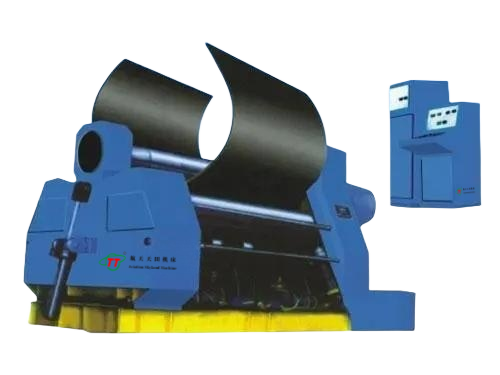

一：数控四辊卷板机具有高精度、高自动化程度等特点，广泛应用于多个行业，以下是其具体应用行业及性能介绍：
机械制造行业：用于制造各种机械结构件，如机床床身、起重机臂架等。这些部件通常需要高精度的弯曲成型，以保证机械的性能和稳定性。
石油化工行业：可用于制造反应釜、塔器、储罐等设备。在石油化工生产中，这些设备需要承受高压、高温和腐蚀性介质，因此对卷板的精度和质量要求极高。
电力行业：用于制造锅炉、汽轮机等发电设备的部件，以及输电线路中的铁塔等。锅炉的炉筒等部件需要精确的卷制工艺，以确保其密封性和安全性。
船舶制造行业：船舶的船体结构件，如船板、龙骨等需要通过卷板机进行弯曲成型。数控四辊卷板机能够满足船舶制造中对板材弯曲精度和表面质量的严格要求，保证船体的强度和稳定性。
金属结构加工行业：在建筑钢结构、桥梁结构等领域，数控四辊卷板机用于加工各种形状的钢梁、钢柱等构件。能够高效地完成大规模的卷板加工任务，提高结构件的加工质量和生产效率。
高精度卷制：采用数控系统精确控制卷制过程，能够实现对板材弯曲半径、角度等参数的精确控制，卷制精度可达到 ±0.1mm 以内，满足各种高精度产品的加工要求。
强大的卷制能力：四辊结构设计使得卷板机能够承受较大的压力和扭矩，可卷制厚度从几毫米到几十毫米，宽度从几百毫米到数米的各种板材，适用范围广泛。
良好的板形控制：通过对各个辊子的独立驱动和精确控制，能够有效控制板材在卷制过程中的变形，减少波浪度、扭曲等缺陷，保证卷制后的板材具有良好的平整度和形状精度。
自动化程度高：操作人员只需在数控系统中输入相关参数，卷板机即可自动完成上料、卷制、卸料等一系列操作，减少了人工干预，提高了生产效率和产品质量的稳定性。同时，还具有故障诊断和自动报警功能，方便及时发现和处理问题。
高效生产：具备较高的卷制速度，可根据板材的材质和厚度自动调整卷制速度，大大缩短了加工时间。而且设备的可靠性高，能够长时间连续运行，提高了生产效率。
I: The numerically controlled four-roller plate bending machine features high precision, a high degree of automation, etc., and is widely applied in multiple industries. The specific application industries and performance introductions are as follows:
Application Industries
Mechanical Manufacturing Industry: It is used for manufacturing various mechanical structural parts, such as the bed of machine tools, the jibs of cranes, etc. These components usually require high-precision bending and forming to ensure the performance and stability of the machinery.
Petrochemical Industry: It can be used for manufacturing equipment such as reaction kettles, towers, storage tanks, etc. In petrochemical production, these equipment need to withstand high pressure, high temperature, and corrosive media, so the requirements for the precision and quality of plate rolling are extremely high.
Power Industry: It is used for manufacturing components of power generation equipment such as boilers and steam turbines, as well as iron towers in transmission lines, etc. Components like the furnace tubes of boilers require precise rolling processes to ensure their sealing and safety.
Shipbuilding Industry: The hull structural parts of ships, such as ship plates and keels, need to be bent and formed through plate bending machines. The numerically controlled four-roller plate bending machine can meet the strict requirements for the bending precision and surface quality of plates in shipbuilding, ensuring the strength and stability of the hull.
Metal Structure Processing Industry: In fields such as construction steel structures and bridge structures, the numerically controlled four-roller plate bending machine is used for processing various shaped components like steel beams and steel columns. It can efficiently complete large-scale plate rolling processing tasks, improving the processing quality and production efficiency of structural parts.
Performance Characteristics
High-precision Rolling: The numerical control system is adopted to precisely control the rolling process, enabling precise control of parameters such as the bending radius and angle of the plate. The rolling precision can reach within ±0.1mm, meeting the processing requirements of various high-precision products.
Powerful Rolling Capacity: The four-roller structural design enables the plate bending machine to withstand large pressure and torque. It can roll various plates with a thickness ranging from several millimeters to dozens of millimeters and a width ranging from several hundred millimeters to several meters, with a wide range of applications.
Good Plate Shape Control: Through independent drive and precise control of each roller, it can effectively control the deformation of the plate during the rolling process, reduce defects such as waviness and distortion, and ensure that the rolled plate has good flatness and shape precision.

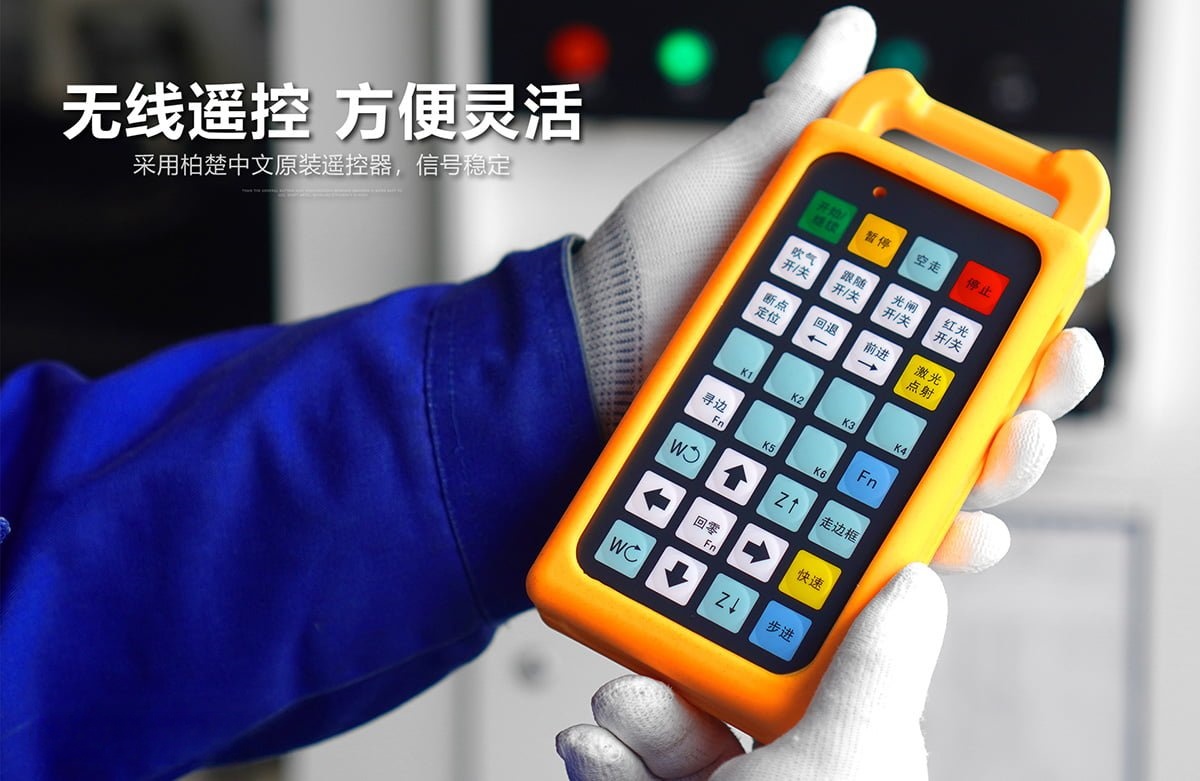

High Degree of Automation: Operators only need to input relevant parameters into the numerical control system, and the plate bending machine can automatically complete a series of operations such as feeding, rolling, and unloading, reducing manual intervention and improving the stability of production efficiency and product quality. At the same time, it also has functions such as fault diagnosis and automatic alarm, making it convenient to discover and handle problems in a timely manner.
Efficient Production: It has a high rolling speed and can automatically adjust the rolling speed according to the material and thickness of the plate, greatly shortening the processing time. Moreover, the equipment has high reliability and can operate continuously for a long time, improving production efficiency

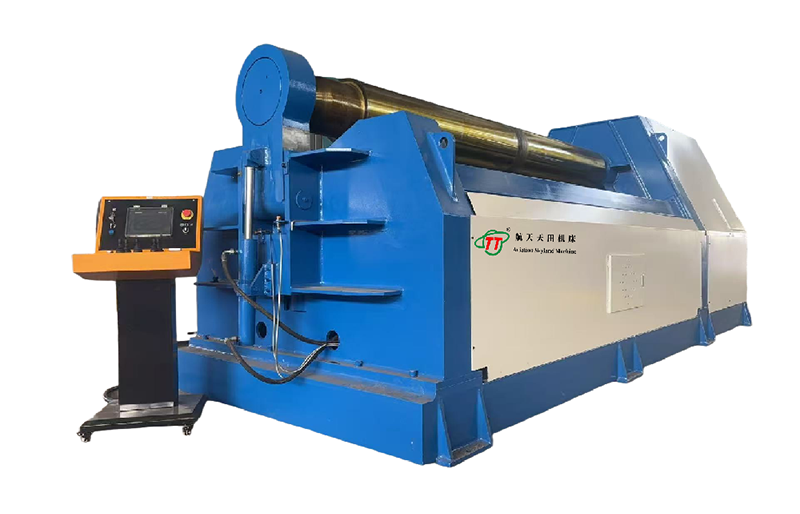

二、数控四辊卷板机的工作原理是通过数控系统控制四个辊子的运动，对板材进行弯曲卷制，具体如下：
结构组成：数控四辊卷板机主要由上辊、下辊、侧辊和数控系统等组成。上辊位于设备的上部，是卷制板材的主要执行部件；下辊位于上辊下方，起到支撑板材和辅助卷制的作用；两个侧辊对称分布在上辊和下辊两侧，用于控制板材的边缘位置和调整卷制曲率。
板材送料：将待卷制的板材放置在卷板机的工作台上，通过输送装置将板材送入卷板机的辊子之间。在送料过程中，板材的位置和姿态由数控系统进行精确控制，确保板材能够准确地进入卷制区域。
辊子运动控制：数控系统根据预先设定的卷制参数（如弯曲半径、卷制角度等），分别控制上辊、下辊和侧辊的运动。上辊和下辊通过电机驱动进行旋转，提供卷制板材所需的摩擦力和驱动力，使板材在辊子的作用下逐渐弯曲。侧辊则通过液压或丝杠传动机构进行水平移动，调整板材两侧的受力情况，从而控制板材的卷制曲率和形状。在卷制过程中，数控系统实时监测辊子的位置、速度和扭矩等参数，并根据实际情况进行自动调整，以保证卷制精度和质量。
卷制过程：随着辊子的转动和侧辊的移动，板材在三个辊子的共同作用下逐渐被弯曲成所需的形状。在卷制初始阶段，上辊和下辊对板材施加压力，使板材产生初步的弯曲；然后，侧辊逐渐向内移动，进一步调整板材的弯曲程度，直到达到设定的卷制半径和角度。在整个卷制过程中，板材始终受到辊子的均匀压力和摩擦力，从而保证了卷制的精度和表面质量。
板材成型：当板材卷制到预定的形状和尺寸后，卷板机停止工作，上辊升起，取出卷制好的工件。如果需要对工件进行进一步的加工或调整，数控四辊卷板机还可以进行多次卷制或微调操作，以满足不同的工艺要求。

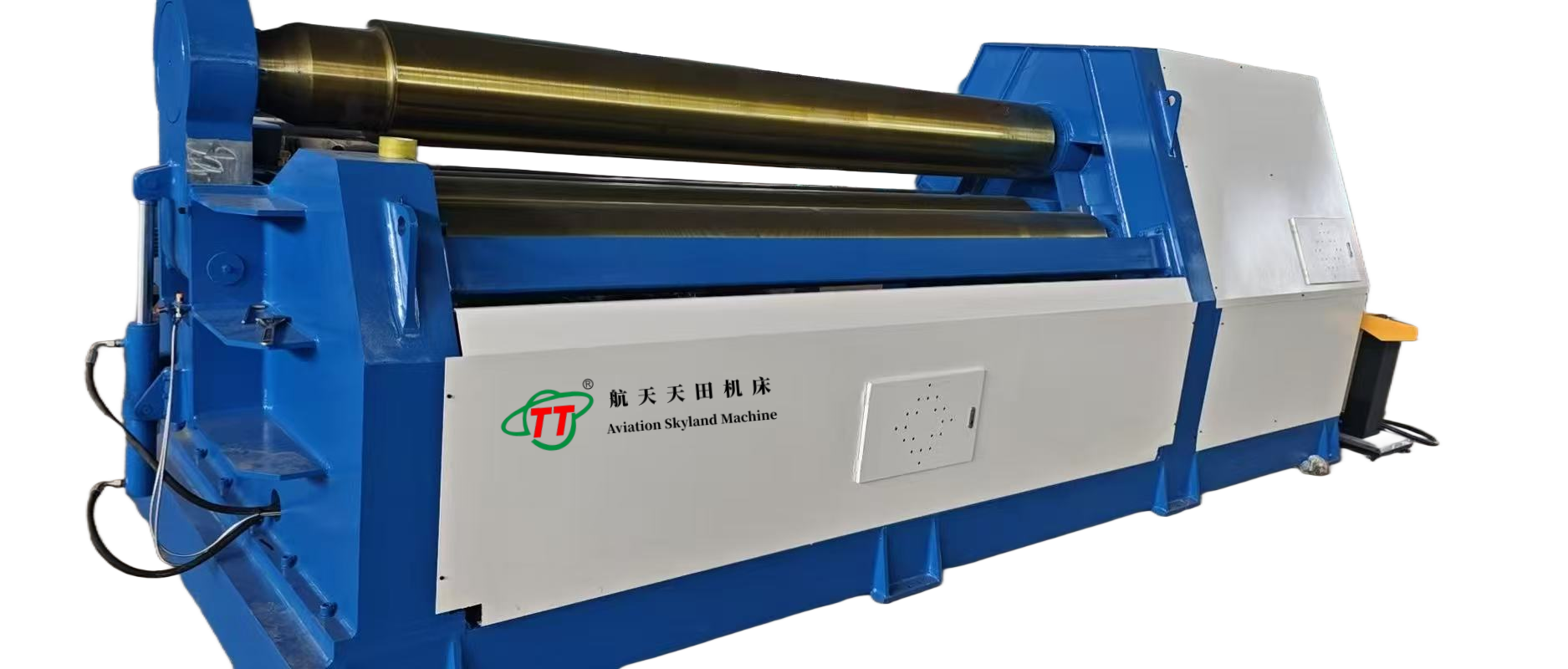

辊子结构与作用：数控四辊卷板机主要由上辊、下辊和两个侧辊组成。上辊位于设备的上部，是卷制过程中的主要施压辊，它可以在垂直方向上进行升降运动，以调整对板材的压力。下辊位于设备的底部，主要用于支撑板材，并与上辊配合形成对板材的初步弯曲。两个侧辊则分布在板材的两侧，它们可以在水平方向上进行移动，通过调整侧辊的位置，能够控制板材的弯曲半径和形状。
板材送料：将待卷制的板材放置在卷板机的工作台上，通过上料装置将板材输送到指定位置。在送料过程中，板材的边缘需要与卷板机的辊子保持平行，以确保卷制的精度。
预弯阶段：板材送料到位后，上辊下降，与下辊一起对板材的两端进行预弯。预弯的目的是使板材的两端形成一定的弧度，以便后续的卷制过程能够顺利进行。在预弯过程中，数控系统会根据预先设定的参数，精确控制上辊的下降速度和压力，以保证预弯的角度和半径符合要求。
卷制阶段：预弯完成后，两个侧辊开始向内侧移动，同时上辊继续施加压力，使板材在三个辊子的共同作用下逐渐弯曲成所需的形状。在卷制过程中，数控系统会实时监测板材的弯曲情况，并根据反馈信号自动调整侧辊的移动速度和上辊的压力，以确保卷制的精度和质量。当板材卷制到一定程度后，需要将板材的末端与起始端进行对接，形成一个完整的圆筒或其他形状的工件。此时，需要精确控制板材的位置和卷制的角度，以保证对接的精度。
校圆阶段：卷制完成后，为了提高工件的圆度和精度，需要对卷制后的工件进行校圆。校圆过程中，上辊和侧辊会对工件进行轻微的调整和施压，使工件的圆周度更加均匀，消除可能存在的局部变形和不圆度。
总之，数控四辊卷板机通过数控系统对四个辊子的精确控制，实现了对板材的高精度卷制。这种工作原理使得卷板机能够适应各种不同材质、厚度和宽度的板材卷制需求，广泛应用于机械制造、石油化工、电力、船舶制造等多个行业
What is the working principle of the numerically controlled four-roller plate bending machine?
The working principle of the numerically controlled four-roller plate bending machine is to control the movement of the four rollers through the numerical control system to bend and roll the plate. The details are as follows:
Structural composition: The numerically controlled four-roller plate bending machine is mainly composed of the upper roller, lower roller, side rollers, and the numerical control system. The upper roller is located at the upper part of the equipment and is the main executive component for rolling the plate. The lower roller is located below the upper roller, which plays a role in supporting the plate and assisting in rolling. The two side rollers are symmetrically distributed on both sides of the upper and lower rollers and are used to control the edge position of the plate and adjust the rolling curvature.
Plate feeding: Place the plate to be rolled on the workbench of the plate bending machine, and feed the plate between the rollers of the plate bending machine through the conveying device. During the feeding process, the position and posture of the plate are precisely controlled by the numerical control system to ensure that the plate can accurately enter the rolling area.
Roller movement control: The numerical control system controls the movement of the upper roller, lower roller, and side rollers respectively according to the preset rolling parameters (such as bending radius, rolling angle, etc.). The upper and lower rollers are driven by a motor to rotate, providing the friction force and driving force required for rolling the plate, so that the plate is gradually bent under the action of the rollers. The side rollers move horizontally through the hydraulic or screw drive mechanism to adjust the force on both sides of the plate, thereby controlling the rolling curvature and shape of the plate. During the rolling process, the numerical control system monitors parameters such as the position, speed, and torque of the rollers in real time and makes automatic adjustments according to the actual situation to ensure the rolling accuracy and quality.
Plate forming: As the rollers rotate and the side rollers move, the plate is gradually bent into the required shape under the combined action of the three rollers. In the initial stage of rolling, the upper and lower rollers apply pressure to the plate to produce a preliminary bend. Then, the side rollers gradually move inward to further adjust the degree of bending of the plate until the set rolling radius and angle are reached. Throughout the rolling process, the plate is uniformly pressured and frictioned by the rollers, ensuring the accuracy of rolling and the surface quality.
When the plate is rolled to the predetermined shape and size, the plate bending machine stops working, the upper roller rises, and the rolled workpiece is taken out. If further processing or adjustment of the workpiece is required, the numerically controlled four-roller plate bending machine can also perform multiple rolling or fine-tuning operations to meet different process requirements.
Roller Structure and Function: The numerically controlled four-roller plate bending machine is mainly composed of an upper roller, a lower roller, and two side rollers. The upper roller is located at the upper part of the equipment and serves as the main pressure-applying roller during the rolling process. It can move up and down vertically to adjust the pressure on the plate. The lower roller is located at the bottom of the equipment and is mainly used to support the plate. It cooperates with the upper roller to form the preliminary bending of the plate. The two side rollers are distributed on both sides of the plate and can move horizontally. By adjusting the position of the side rollers, the bending radius and shape of the plate can be controlled.
Plate Feeding: Place the plate to be rolled on the workbench of the plate bending machine, and use the feeding device to convey the plate to the designated position. During the feeding process, the edge of the plate needs to be kept parallel to the rollers of the plate bending machine to ensure the rolling accuracy.Pre-bending Stage: After the plate is fed in place, the upper roller descends and pre-bends both ends of the plate together with the lower roller. The purpose of pre-bending is to form a certain curvature at both ends of the plate so that the subsequent rolling process can proceed smoothly. During the pre-bending process, the numerical control system precisely controls the descending speed and pressure of the upper roller according to the preset parameters to ensure that the pre-bending angle and radius meet the requirements.
Rolling Stage: After the pre-bending is completed, the two side rollers start to move inward, and at the same time, the upper roller continues to apply pressure, so that the plate is gradually bent into the required shape under the combined action of the three rollers. During the rolling process, the numerical control system monitors the bending situation of the plate in real time and automatically adjusts the moving speed of the side rollers and the pressure of the upper roller according to the feedback signals to ensure the rolling accuracy and quality. When the plate is rolled to a certain extent, the end of the plate needs to be docked with the starting end to form a complete cylindrical or other shaped workpiece. At this time, the position of the plate and the rolling angle need to be precisely controlled to ensure the docking accuracy.
Circularity Correction Stage: After the rolling is completed, in order to improve the roundness and accuracy of the workpiece, the rolled workpiece needs to be corrected for circularity. During the circularity correction process, the upper roller and the side rollers slightly adjust and apply pressure to the workpiece to make the circularity of the workpiece more uniform and eliminate possible local deformation and out-of-roundness.
In conclusion, the numerically controlled four-roller plate bending machine achieves high-precision rolling of plates through the precise control of the four rollers by the numerical control system. This working principle enables the plate bending machine to meet the rolling requirements of plates of various materials, thicknesses, and widths, and it is widely used in many industries such as mechanical manufacturing, petrochemical, electric power, and shipbuilding

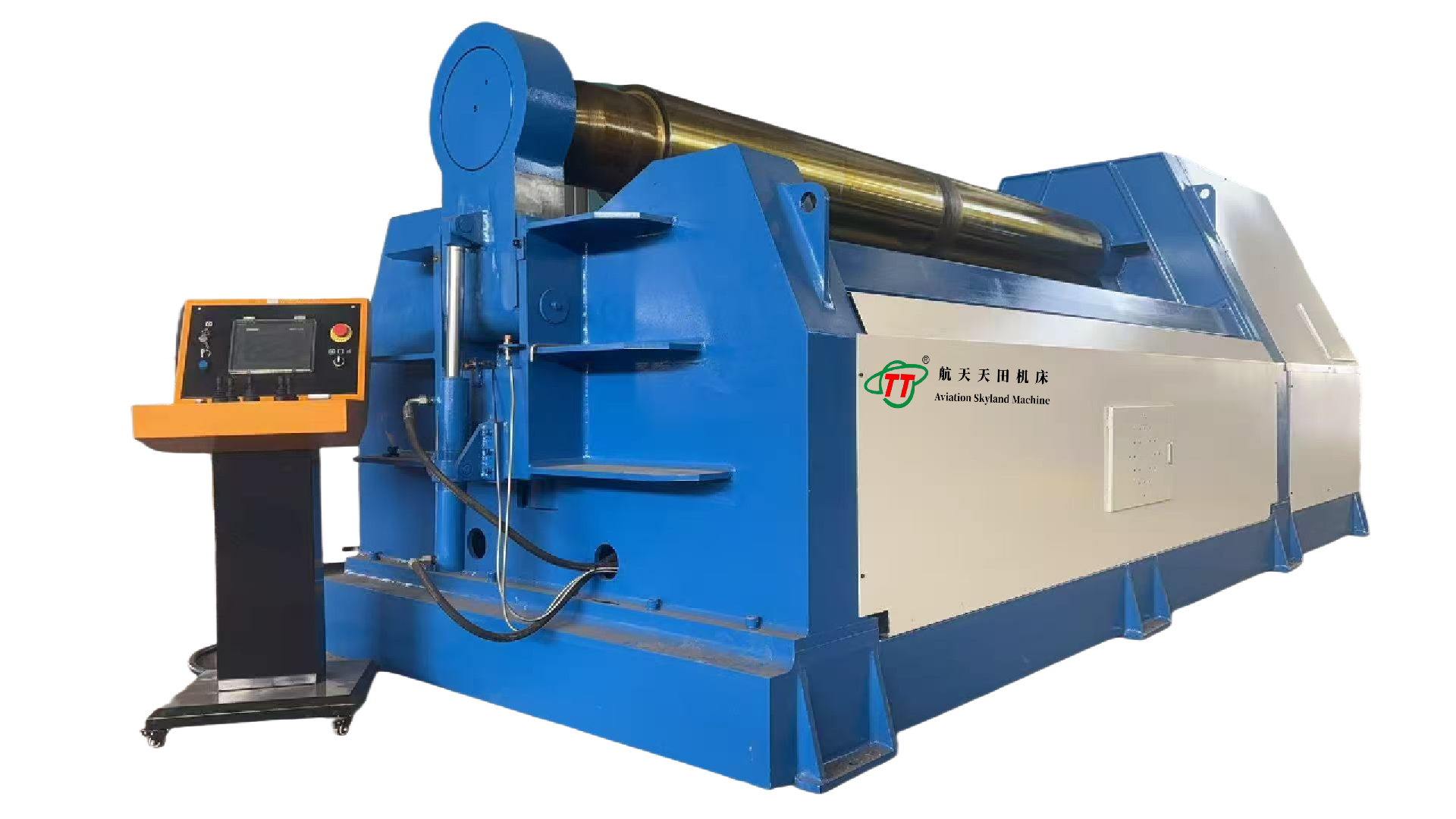

二、常用设备的技术参数（
Technical parameters of commonly used equipment）：
| HT12W四辊卷板机( 程序数控）four-roller plate bending machine (program numerical control- |
设备型号
Equipment model | 12X 4000 | 16x X3200 | 20x 2500 | 25X 2000 | 32X 2500 | 32X 4000 | 40x 3200 | 45x 2500 | 50X 2000 | 50X 3200 | 60X 3200 | 70X 3000 | 80x 3200 | 90X 4000 |
最大卷板宽度（mm）
Maximum width of rolled plate | 4000 | 3200 | 2500 | 2000 | 2500 | 4000 | 3200 | 2500 | 2000 | 3200 | 3200 | 3000 | 3200 | 4000 |
最大卷板厚度（mm）
Maximum thickness of rolled plate | 12 | 16 | 20 | 25 | 32 | 32 | 40 | 45 | 50 | 50 | 60 | 70 | 80 | 90 |
最大预弯宽度（mm）
Maximum pre-bending width | 8 | 12 | 16 | 20 | 25 | 25 | 32 | 40 | 42 | 40 | 50 | 60 | 70 | 80 |
最大板宽时最小卷筒直径（mm）
Minimum drum diameter at maximum plate width | 800 | 800 | 800 | 800 | 1500 | 1300 | 1300 | 1300 | 1300 | 1800 | 2000 | 2000 | 2500 | 3000 |
板材屈服极限(兆帕)
Yield limit of the plate (MPa) | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 | 245 |
上辊直径(mm)
Diameter of the upper roller | 380 | 380 | 380 | 380 | 520 | 650 | 650 | 650 | 650 | 680 | 700 | 750 | 800 | 900 |
下辊直径(mm)
Diameter of the lower roller | 340 | 340 | 340 | 340 | 500 | 580 | 580 | 580 | 580 | 65O | 680 | 720 | 780 | 880 |
侧辊直径(mm)
Diameter of the side roller | 280 | 280 | 280 | 280 | 350 | 480 | 480 | 480 | 480 | 520 | 550 | 600 | 620 | 700 |
卷板速度(米／分钟)
Rolling speed (m/min) | 4.5 | 4.5 | 4.5 | 4.5 | 4 | 4.5 | 4.5 | 4.5 | 4.5 | 4 | 3.5 | 3.5 | 3 | 3 |
液压系统工作压力(兆帕)
Working pressure of the hydraulic system
(megapascal, MPa) | 16 | 16 | 20 | 20 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
主电机功率（千瓦）
Main motor power (kilowatt) | 37 | 37 | 30 | 30 | 45 | 45 | 45 | 45 | 45 | 110 | 121 | 125 | 132 | 180 |
外型尺寸(长X宽X高)(米)
Overall dimensions (length * width * height) | 7.6X
2X
2.15 | 6.8x
2X
2.15 | 5.68x
2.38x
3.67 | 5.56X
2X
2.2 | 6.5X
2.76X
3.15 | 12.3X
2.9X
3.4 | 11.5x
2.9x
3.33 | 1.08x
2.9x
3.33 | 10.3x
2.9X 3.33 | 12X
3.2x
3.4 | 7.3X
3.64X
3.8 | 13X
3.5x
3.8 | 13.5x
3.5x
3.8 | 15x
3.8X
4.2 |
本资料所列数据为参考数据，如与机床实际数据不符，应以机床实际数据为准，
以上参数如有变动，恕不另行通知，本公司保留对此资料的最终解释权!
Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.
The above parameters are subject to change without prior notice. Our company reserves the right to the final interpretation of this document!
