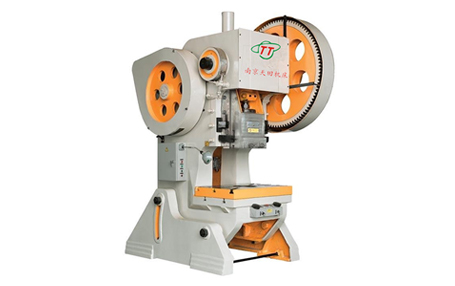

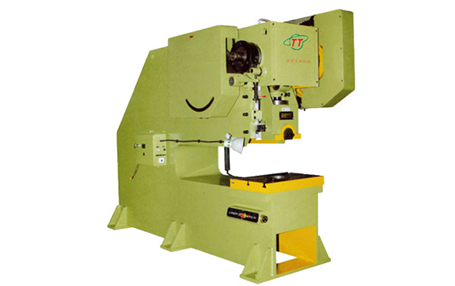

HT21系列深喉口钢板焊接冲床(Series of Deep-throat Steel Plate Welded Punch Presses)

HT21系列深喉口钢板焊接冲床(Series of Deep-throat Steel Plate Welded Punch Presses)

HT21系列深喉口钢板焊接冲床(Series of Deep-throat Steel Plate Welded Punch Presses)

HT21系列深喉口钢板焊接冲床(Series of Deep-throat Steel Plate Welded Punch Presses)

服务热线: 13905146213
产品简介 / Introduction


深喉口钢板焊接冲床是一种常见的冲压设备,具有以下特点:


  1. 深喉口设计:喉口深度较大,能为冲压加工提供更广阔的操作空间,便于对长尺寸或异形工件进行加工,比如可以对一些长度较大的条形钢板进行冲压成型,而普通冲床可能因喉口限制无法完成。

  2. 焊接机身:采用钢板焊接结构,机身具有较高的强度和刚性。焊接结构相比铸造结构,能更好地承受冲床工作时产生的冲击载荷,减少机身变形,保证冲压精度。同时,焊接机身的制造周期相对较短,成本也较低。

  3. 高精度:配备高精度的导向装置和传动系统,能够保证冲头与模具之间的配合精度,使冲压件的尺寸精度和表面质量得到有效控制。例如,在生产一些对精度要求较高的汽车零部件时,深喉口钢板焊接冲床能够满足其加工要求。

  4. 高生产效率:冲床的冲压速度较快,且具备良好的自动化接口,可以方便地与自动化送料、出料装置相连接,实现自动化生产,提高生产效率。例如在大规模生产电子元件外壳时,可通过自动化生产线与深喉口冲床配合,实现高速、高效的冲压生产。

  5. 良好的稳定性:在设计和制造过程中,充分考虑了冲床的稳定性。通过合理的结构布局和平衡装置,减少了冲床工作时的振动和噪音,不仅提高了工作环境的舒适度,还延长了冲床及模具的使用寿命。

  6. 广泛的适用性:可以配备不同类型的模具,适用于多种材料和多种形状的冲压加工,如金属薄板、塑料板等材料的冲孔、落料、弯曲、拉伸等工艺。无论是生产小型的五金零件,还是大型的汽车覆盖件,深喉口钢板焊接冲床都能发挥重要作用

Features of Deep-throat Steel Plate Welded Punch Press


The deep-throat steel plate welded punch press is a common stamping equipment with the following features:


  1. Deep-throat design: It has a relatively large throat depth, which provides a broader operating space for stamping processing. It is convenient for processing long-sized or special-shaped workpieces. For example, it can carry out stamping and forming on some long strip-shaped steel plates, while an ordinary punch press may not be able to complete the processing due to the limitation of the throat.

  2. Welded body: It adopts a steel plate welded structure, and the body has high strength and rigidity. Compared with the casting structure, the welded structure can better withstand the impact load generated during the operation of the punch press, reduce the deformation of the body, and ensure the stamping accuracy. At the same time, the manufacturing cycle of the welded body is relatively short, and the cost is also lower.

  3. High precision: It is equipped with high-precision guiding devices and transmission systems, which can ensure the matching accuracy between the punch and the die, and effectively control the dimensional accuracy and surface quality of the stamped parts. For example, when producing some automotive parts with high precision requirements, the deep-throat steel plate welded punch press can meet the processing requirements.

  4. High production efficiency: The punching speed of the punch press is relatively fast, and it has good automation interfaces, which can be conveniently connected with automatic feeding and discharging devices to realize automated production and improve production efficiency. For example, when mass-producing the shells of electronic components, the deep-throat punch press can be coordinated with an automated production line to achieve high-speed and efficient stamping production.

  5. Good stability: During the design and manufacturing process, the stability of the punch press is fully considered. Through a reasonable structural layout and balancing device, the vibration and noise during the operation of the punch press are reduced. This not only improves the comfort of the working environment but also prolongs the service life of the punch press and the die.

  6. Wide applicability: It can be equipped with different types of dies and is suitable for stamping processing of various materials and shapes, such as punching, blanking, bending, and stretching processes of materials like metal sheets and plastic sheets. Whether it is for producing small-sized hardware parts or large-sized automotive body panels, the deep-throat steel plate welded punch press can play an important role

一、HT21系列深喉颈冲床性能特点(Performance Characteristics of the HT21 Series Deep-throat Punch Press):

1、机身由钢板焊接而成,刚性好,精度稳定。

2、喉口深,可加工普通冲床无法完成的工件,可进行大规格板料冲压加工。

3、可配数控自动送料机构,实现冲压自动化。


  1. The body is welded from steel plates, featuring good rigidity and stable precision.

  2. With a deep throat, it can process workpieces that cannot be completed by ordinary punch presses, and is capable of stamping large-sized sheet materials.

  3. It can be equipped with a numerically controlled automatic feeding mechanism to achieve automated stamping.

二、技术参数(Technical parameters):

设备名称  Equipment model
单位
HT21-6.3
HT21-10
HT2I-16
HT2I-25
HT2I-40
HT2I-63
HT2I-80
HT2I-100
HT2I-125
HT2I-160
公称力 Nominal pressure
kN
63
100
160
250
400
630
800
1000
1250
1600
公称力行程 Nominal pressure
mm
2.5
4
5
6
4
6
8
10
10
6
滑块行程 Slider stroke
mm
35
60
55/70
80
100
100
120
16-140
16-140
160
行程次数 Number of strokes per minute
mm
170
145
120
55
55
48
50
45
45
40
最大封闭高度 Maximum closed height
mm
150
180
220
250
220
270
360
400
400
550
封闭高度调节量
Adjustment range of closed height
mm
30
35
45
70
80

90
90
100
100
110
滑块中心至机身距离Distance from the
centerof the slider to the machine body
mm
500
500
500
500
500

600
500
500
500
500
工作台尺寸(前后*左右)Worktable size
 (front-to-back * left-to-right)
mm
200*310
240*360
300*450
360*560
380*610

480*710
570*760
600*1020
600*1020
740*1300
320*480
工作台孔尺寸(直径-*前后*左右)
Worktable size
 (front-to-back * left-to-right)
mm
100*120
100*120
160*160
200*200
200*
200

200*
200
220*
220
250*320
250*320
390*590
工作台板厚度
Thickness of the worktable plate
mm
30
50
60
70
60
80
100
110
110
120
滑块底面尺寸(直径*左右)
Size of the bottom surface of the slider
(diameter * left-to-right)
mm
120*140
150*170
180*200
210*250
215*260

280*320
280*320
350*540
350*540
580*770
模柄孔尺寸(直径*深度)
Size of the die shank hole
 (diameter * depth)
mm
30*50
35*50
40*60
40*70
50*80

50*80
50*80
60*80
60*80
65*90
机身最大可倾角度
Maximum tilting angle of the fuselage
mm










立柱间的距离  Distance between columns
mm
170
200
240
350
360
450
450
720
720
810
电动机
electric motor
型号model
mm
Y90S-6
Y90L-6
Y100L-6
Y100L1-4

Y100L2-4
Y160M-6
Y132M-4
Y132M-4
Y180L-6
功率power
kW
0.75
1.1
1.5
2.2

5.5
7.5
7.5
7.5
15
外形尺寸(长*宽*;高)
Overall dimensions (length * width * height)
mm
1540*700* 1525
1510*700*1660
1650*840*1880
1790*1100*2280
2130*1050*2145
218*1250*; 2500
2220*1350* 2900
2060*1350*2590
2060*1350*2590
2590*1390*3165
注:本资料所列数据为参考数据,如与机床实际数据不符,应以机床实际数据为准,
以上参数如有变动,恕不另行通知,本公司保留对此资料的最终解释权!
Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.


The above parameters are subject to change without prior notice. Our company reserves the right to the final interpretation of this document!
