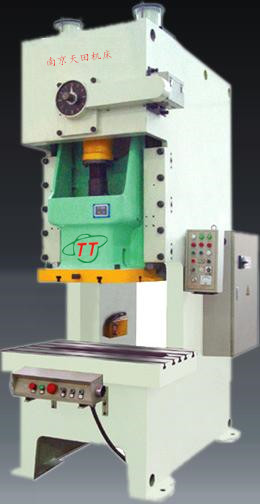

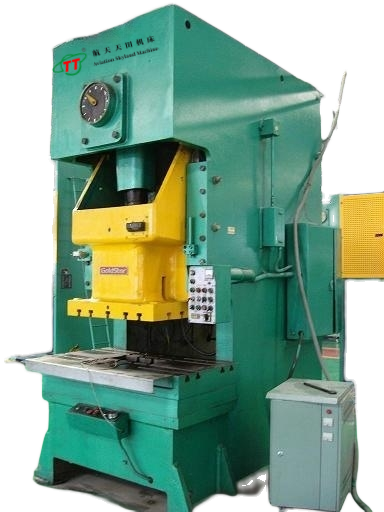

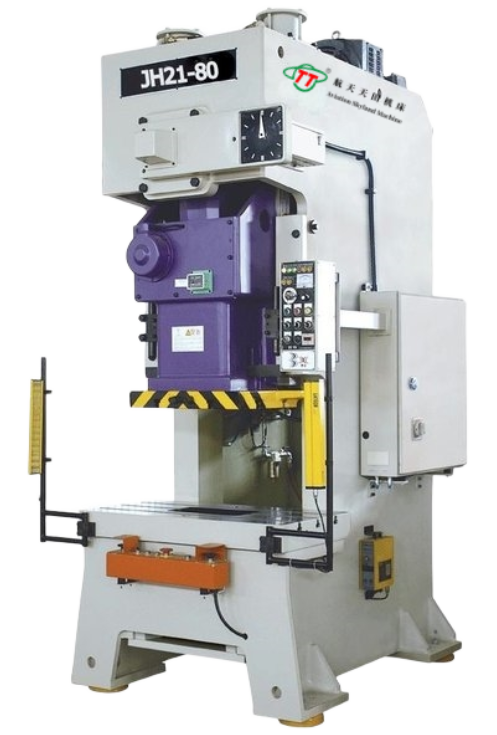

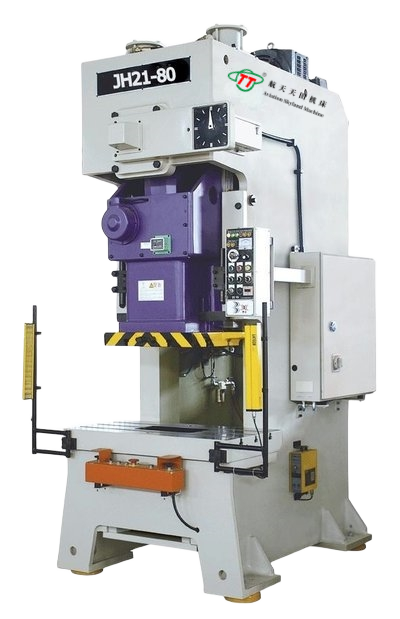

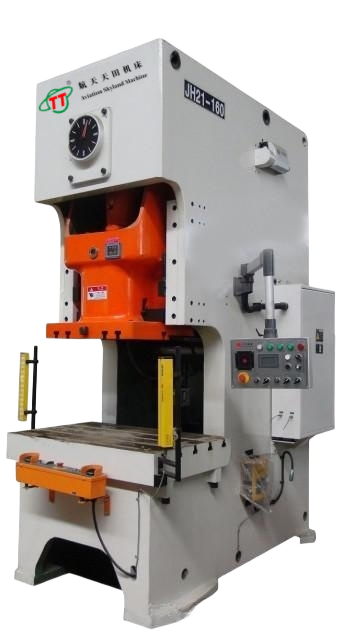

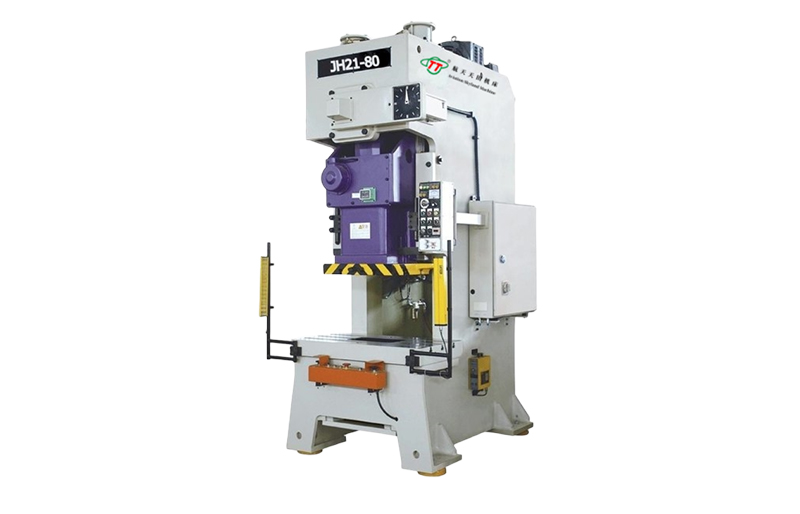

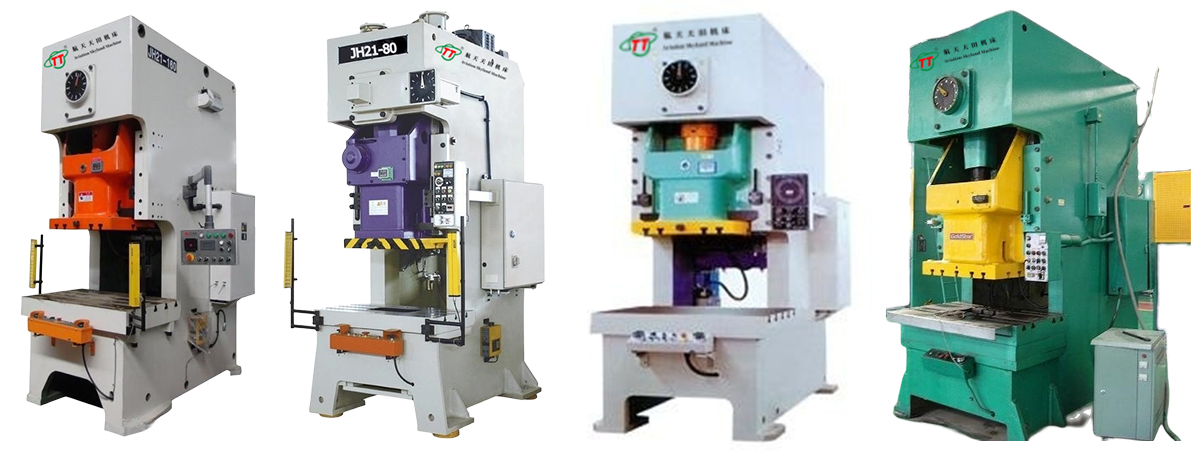

HT21G系列气动高速压力机(Pneumatic high-speed press)

服务热线: 13905146213
产品简介 / Introduction




 如何选择适合自己生产需求的高速压力机或气动高速压力机?

  1. 生产规模

    • 大规模生产:如果是大规模、连续的生产,对生产效率和稳定性要求高,普通高速压力机可能更合适。其具有较高的冲压力和生产速度,能够满足长时间、高强度的生产任务。例如,汽车零部件制造企业,需要大量冲压各种金属部件,普通高速压力机可凭借其强大的动力和高效的传动系统,实现大规模的自动化生产。

    • 中小规模生产:对于中小规模的生产,气动高速压力机可能更具优势。它的设备成本相对较低,且能快速调整参数以适应不同产品的生产,灵活性较高。比如小型五金加工厂,产品种类多样但批量不大,气动高速压力机可以较为经济地满足其生产需求。

  2. 工件精度要求

    • 高精度要求:当生产对工件精度要求极高时,如电子芯片封装、精密仪器零部件制造等领域,无论是高速压力机还是气动高速压力机,都需要具备高精度的控制系统和传动机构。普通高速压力机通过高精度的齿轮传动和先进的数控系统,能实现较高的定位精度;气动高速压力机则凭借其精确的气动控制技术,也可以达到很高的加工精度。在这种情况下,需要对比不同设备的精度指标,并参考设备制造商在相关领域的业绩和口碑。

    • 一般精度要求:对于一些对精度要求不是特别苛刻的工件,如普通的金属冲压件,两种类型的压力机通常都能满足要求。此时可以更多地考虑其他因素,如成本、速度等。

  3. 冲压材料和工艺

    • 材料特性:不同的材料对压力机的冲压力和模具适应性有不同要求。对于高强度、厚板材料的冲压,普通高速压力机的大扭矩和大冲压力更能胜任;而对于一些薄型材料或质地较软的材料,气动高速压力机的柔和冲压力和快速响应可能更有利于防止材料变形或损坏。例如,在冲压不锈钢薄板时,气动高速压力机可以更好地控制冲压力度,避免板材过度变形。

    • 工艺复杂性:如果冲压工艺较为复杂,需要进行多步冲压、精密定位或特殊的成型工艺,普通高速压力机可能更具优势,因为其控制系统更复杂,能够实现更精确的运动控制和工艺参数调整。但如果工艺相对简单,主要侧重于快速冲压和频繁换模,气动高速压力机的灵活性则更能发挥作用。

  4. 设备成本和运营成本

    • 初始投资:一般来说,普通高速压力机由于其复杂的机械结构和高精度的制造工艺,设备价格较高;气动高速压力机的结构相对简单,成本相对较低。如果企业预算有限,气动高速压力机可能是一个更合适的选择。

    • 运营成本:包括能耗、维护成本等。普通高速压力机的电机驱动系统能耗相对较高,且机械部件的维护成本也较大;气动高速压力机主要消耗压缩空气,能耗相对较低,维护也主要集中在气动元件上,成本相对较低。此外,还要考虑设备的使用寿命和折旧成本等因素。

  5. 生产场地和空间

    • 空间要求:普通高速压力机通常体积较大,需要较大的安装空间和基础建设要求;气动高速压力机结构相对紧凑,占用空间较小。如果生产场地有限,气动高速压力机可能更适合。同时,还要考虑设备的布局和物流通道等因素,确保生产过程的顺畅。

  6. 售后服务和技术支持

    • 服务质量:选择设备时,要考虑制造商或供应商的售后服务质量和技术支持能力。无论是高速压力机还是气动高速压力机,在使用过程中都可能出现故障或需要进行技术升级。良好的售后服务可以确保设备及时得到维修和保养,减少停机时间,提高生产效率。例如,制造商是否能提供及时的配件供应、专业的维修人员和远程技术支持等。

    • 技术培训:供应商能否提供专业的技术培训也是重要的考量因素。操作人员需要熟悉设备的操作和维护知识,以确保设备的正常运行和生产安全。因此,选择能够提供全面技术培训的供应商,可以帮助企业更快地上手和使用设备。


    • Large-scale Production: For large-scale and continuous production, which requires high production efficiency and stability, a common high-speed press is usually more suitable. It has a high punching force and production speed, and can meet the production tasks with long working hours and high intensity. For example, in automotive parts manufacturing enterprises that need to stamp a large number of metal parts, a common high-speed press can achieve large-scale automated production with its powerful power and efficient transmission system.
      Small and Medium-scale Production: For small and medium-scale production, a pneumatic high-speed press has more advantages. Its equipment cost is relatively low, and it can quickly adjust parameters to adapt to the production of different products, with high flexibility. For instance, in small hardware processing factories where there is a variety of products but in small batches, a pneumatic high-speed press can economically meet their production needs.
    • Workpiece Precision Requirements

    • High Precision Requirements: In fields where extremely high precision of workpieces is required, such as electronic chip packaging and the manufacturing of precision instrument parts, both high-speed presses and pneumatic high-speed presses need to have high-precision control systems and transmission mechanisms. A common high-speed press can achieve high positioning precision through high-precision gear transmission and an advanced numerical control system; a pneumatic high-speed press can also reach a high level of processing precision relying on its precise pneumatic control technology. In this case, it is necessary to compare the precision indicators of different equipment and refer to the performance and reputation of equipment manufacturers in related fields.
      General Precision Requirements: For workpieces with not particularly strict precision requirements, such as ordinary metal stamped parts, both types of presses can usually meet the requirements. At this time, other factors such as cost and speed can be considered more.
    • Stamping Materials and Processes

    • Material Characteristics: Different materials have different requirements for the punching force of the press and the adaptability of the mold. For stamping of high-strength and thick plate materials, the large torque and high punching force of a common high-speed press are more capable; for some thin materials or soft materials, the gentle punching force and rapid response of a pneumatic high-speed press are more conducive to preventing material deformation or damage. For example, when stamping thin stainless steel plates, a pneumatic high-speed press can better control the punching force to avoid excessive deformation of the plate.
      Process Complexity: If the stamping process is complex, requiring multi-step stamping, precise positioning, or special forming processes, a common high-speed press is more advantageous because its control system is more complex and can achieve more precise motion control and process parameter adjustment. However, if the process is relatively simple, with a focus on rapid stamping and frequent die changes, the flexibility of a pneumatic high-speed press can play a greater role.
    • Equipment Cost and Operation Cost

    • Initial Investment: Generally speaking, due to its complex mechanical structure and high-precision manufacturing process, the equipment price of a common high-speed press is relatively high; the structure of a pneumatic high-speed press is relatively simple, and its cost is relatively low. If the enterprise budget is limited, a pneumatic high-speed press may be a more suitable choice.
      Operation Cost: This includes energy consumption, maintenance cost, etc. The motor drive system of a common high-speed press has relatively high energy consumption, and the maintenance cost of mechanical components is also relatively large; a pneumatic high-speed press mainly consumes compressed air, with relatively low energy consumption, and its maintenance mainly focuses on pneumatic components, with relatively low cost. In addition, factors such as the service life and depreciation cost of the equipment should also be considered.
    • Production Site and Space

    • Space Requirements: A common high-speed press usually has a large volume and requires a large installation space and basic construction; the structure of a pneumatic high-speed press is relatively compact, occupying a smaller space. If the production site is limited, a pneumatic high-speed press may be more suitable. At the same time, factors such as the layout of the equipment and the logistics channels should also be considered to ensure the smooth production process.
    • After-sales Service and Technical Support

    • Service Quality: When selecting equipment, the after-sales service quality and technical support capabilities of the manufacturer or supplier should be considered. Whether it is a high-speed press or a pneumatic high-speed press, malfunctions may occur during use, or technical upgrades may be required. Good after-sales service can ensure that the equipment is repaired and maintained in a timely manner, reducing downtime and improving production efficiency. For example, whether the manufacturer can provide timely supply of spare parts, professional maintenance personnel, and remote technical support, etc.
      Technical Training: Whether the supplier can provide professional technical training is also an important consideration. Operators need to be familiar with the operation and maintenance knowledge of the equipment to ensure the normal operation of the equipment and production safety. Therefore, choosing a supplier that can provide comprehensive technical training can help enterprises get started and use the equipment more quickly

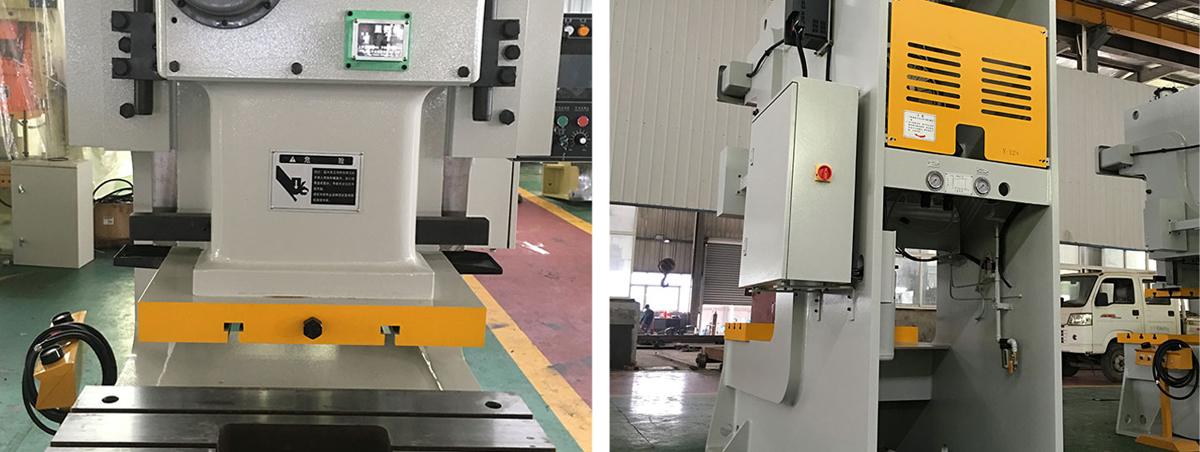

一、HT21G系列开式快速压力机性能介绍//(Performance Introduction of the HT21G Series Open-type High-speed Press)


二、技术参数Technical parameters):

设备规格

Equipment Name

单位

unit

HT21-25

HT21-40

HT21-63

HT21-80

HT21-100

HT21-125

HT21-160

HT21-200

HT21-250

HT21-315

HT21-400

形式 form

开式

open type

S

S

S

S

S

S

S

S

S

S

S

公称力

Nominal pressure

kN

250

400

630

800

1000

1250

1600

2000

2500

3150

4000

公称力行程

Stroke under nominal force

mm

3

4

4

5

5

6

6

6

6.5

7

8

滑块行程

Slider stroke

mm

80

120

140

160

160

180

200

200

220

220

250

行程次数

Number of strokes
per minute

固定

fasten

min-1

100

80

70

60

55

50

45

45

33

33

30

可变

flexible

min-1

60-120

50-95

45-85

40-75

35-65

35-60

30-55

30-55

25-40

25-40

20-35

最大装模高度

Maximum die setting height

mm

250

270

300

320

335

350

400

450

500

500

550

装模高度调节量

Adjustment amount of die setting height

mm

50

60

70

80

90

90

100

110

120

120

120

滑块中心至机身距离

Distance from the
Distance from the

mm

210

225

270

310

330

350

400

430

450

450

450

立柱距离 Column spacing

mm

470

525

560

580

670

630

696

910

980

980

1050

滑块底面尺寸The size of the

 bottom surface of the slider

左右left and right

mm

360

400

480

540

620

620

700

880

900

900

1020

前后in front and behind

mm

250

340

400

460

520

520

580

650

700

700

750

模柄孔尺寸Size of the die shank hole

直径 diamete

mm

50

50

50

50

*70

*70

*70

*70

*70

*70

*70

深度 depth

mm

50

60

70

70

*80

*80

*100

*100

*100

*100

*100

工作台板尺寸

左右left and right

mm

720

825

930

950

1060

1100

1175

1390

1500

1540

1700

前后in front and behind

mm

400

440

520

600

640

680

760

840

880

880

880

落料孔直径 Diameter of the blanking hole

mm

150

150

150

180

180

200

220

240

240

240

240

工作台板厚度

Thickness of the worktable plate

mm

80

110

130

140

145

155

165

180

190

190

210

工作台离地面距离

Height of the worktable from the ground

mm

750

775

800

845

850

850

900

1000

1000

1000

1100

外形尺寸

Overall dimensions

前后 in front

and behind

mm

1500

1540

1585

1765

2000

2040

2305

2600

2660

2720

2850

左右 left and

 right

mm

945

1075

1200

1200

1300

1320

1420

1540

1640

1680

1750

高 height

mm

2090

2365

2470

2675

2960

2980

3210

3800

3850

3850

4585

地脚螺栓距离

前后

 in front

and behind

mm

990

1095

1105

1225

1350

1445

1665

2020

2230

2200

2385

左右 left and

 right

mm

690

760

840

920

1020

1040

1140

1360

1460

1500

1570

电动机 electric moto

功率

 power


kW

3

5.5

5.5

7.5

7.5

11

15

18.5

22

30

37

空压机气压   Air compressor pressure

Mpa

0.5


三、标准配置(Standard Configuration):

1、 高性能湿式离合器。

2、 液压过载保护装置。

3 、电动黄油润滑装置。

4、手动稀油润滑装置。

5、滑块及上模平衡装置。

6、 误送检知接口。

7、触摸屏。

8、 电子式曲轴角度指示器(HT21-25~80为指针式。

9、 凸轮控制器。

10、 电动滑块调整装置(HT21-60~400。

11、 可编程控制器。

12、 空气源快速接头。

13、 防震垫。

14、工作灯。

15、空气吹料。

16、 二度落。

17、 预调计数器(触摸屏显示)。

  1. High-performance wet clutch.

  2. Hydraulic overload protection device.

  3. Electric grease lubrication device.

  4. Manual thin oil lubrication device.

  5. Slider and upper die balancing device.

  6. False feeding detection interface.

  7. Touch screen.

  8. Electronic crankshaft angle indicator (For HT21-25~80, it is a pointer type).

  9. Cam controller.

  10. Electric slider adjustment device (For HT21-60~400).

  11. Programmable logic controller (PLC).

  12. Quick connector for air source.

  13. Shock-proof pad.

  14. Work lamp.

  15. Air blowing device for materials.

  16. Two-stage ejection.

  17. Pre-set counter (displayed on the touch screen)

四、选用配置(Optional Configuration):

1、干式离合制动器。

2、气垫装置。

3、 光电保护装置。

4、快速换模装置。

5、 输出轴。

6、 变频调速。

7 滑块上部脱料装置。

  1. Dry clutch brake.

  2. Air cushion device.

  3. Photoelectric protection device.

  4. Quick die change device.

  5. Output shaft.

  6. Frequency conversion speed regulation.

  7. Stripping device on the upper part of the slider.

(用户选用,应在合同中注明(If the user selects these configurations, it should be specified in the contract.)。

 本资料所列数据为参考数据,如与机床实际数据不符,应以机床实际数据为准,
以上参数如有变动,恕不另行通知,本公司保留对此资料的最终解释权!

Remarks: The data listed in this document are for reference only. In case of any discrepancy between these data and the actual data of the machine tool, the actual data of the machine tool shall prevail.

The above parameters are subject to change without prior notice. Our company reserves the right to the final interpretation of this document!
